Bondek Alternative Q345 0.8-1.5mm Galvanized Metal Decking
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | FASECbuildings |
| Certification: | EN 1090-2-2018; ISO3834 |
| Model Number: | HZFS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000sqm |
|---|---|
| Price: | USD10-20/sqm |
| Packaging Details: | Seaworthy packing in container or bulk vessel |
| Delivery Time: | 1-4 weeks per production plan |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union |
| Supply Ability: | 50000sqm per month |
|
Detail Information |
|||
| Material: | Steel Floor Decking Sheet | Color: | Silver |
|---|---|---|---|
| Zinc: | 350g/m2 | Surface: | Galvanized |
| Width: | 970mm | Thickness: | 1-3mm |
| Application: | Floor Slab | ||
| High Light: | Q345 galvanized metal decking,1.5mm galvanized metal decking,0.8mm galvanized steel decking |
||
Product Description

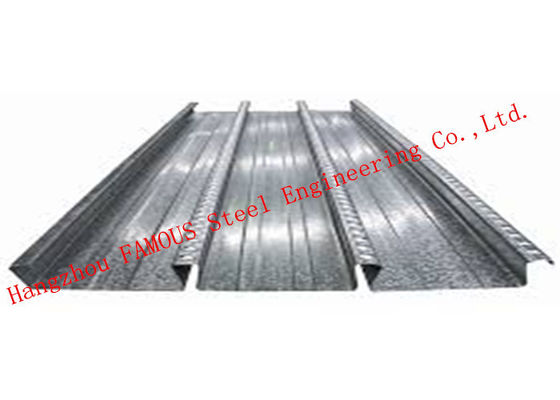

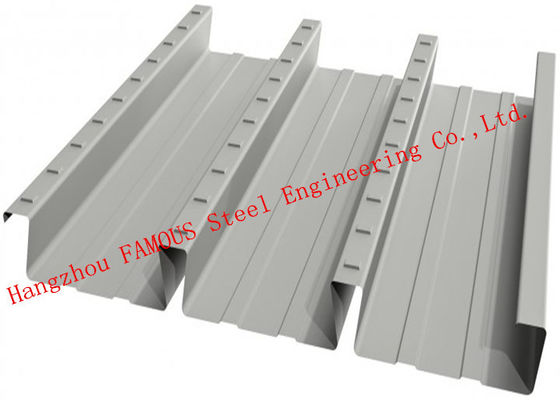

Bondek Alternative Metal Floor Decking
The original name in steel formwork, BONDEK is an efficient, versatile and robust structural decking and ceiling system for concrete slabs. It is a highly regarded formwork product offering efficiency and speed of construction.

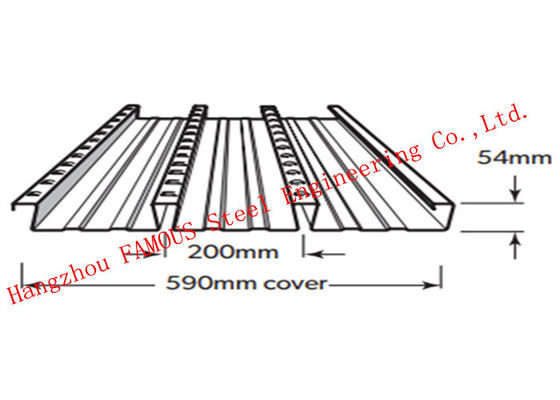

Structural Steel Decking is a highly efficient, versatile and robust formwork, reinforcement and ceiling system for concrete slabs. It is a profiled steel sheeting widely accepted by the building and construction industry to offer efficiency and speed of construction. It has re-entrant ribs into the concrete slab at approximate 200mm centers and its depth is 54mm. It is available in a Base Metal Thicknesses (BMT) 0.6, 0.75, 0.9 and 1.0mm.
Specifications:
| Name | Bondek Alternative Metal Floor Decking |
| Base material | Steel Sheet |
| Steel Grade | SGCC |
| Yield strength | Q235 or Q345 Refer to Standards GB/T1591-2008 |
| Thicknes | 0.8 -1.5mm(normal 0.8,1.0,1.2) |
| Zinc coating | 60-275g/m2 |
| Wave Height | 51mm-76mm |
| EffectiveWidth | 688mm-940mm |
|
Length |
0-11.8m |
| Less than 5.8m load in 20GP | |
| 5.8m-11.8m load in 40GP | |
| Packing | Bundle ,water-proof package with steel belt |
| Delivery time |
20 days after confirmation
|
Features:
1. Excellent spanning capacities for greater strength and less deflection
2. Acts as a permanent formwork
3. Works as composite slab saving on concrete and reinforcement costs
4. Features slip free embossments and ribs at 200mm centres meaning a safe work platform
Advantages:
• Excellent spanning capacities for greater strength and less deflection
• Acts as permanent formwork with minimal propping and no stripping of formwork face is required
• Fast and easy to install (590mm wide) with less handling required
• Works as reinforcement with composite slab saving on concrete and reinforcement costs
• Ribs at 200mm centers creating a safe working platform with slip resistant embossments on the ribs
• Advanced design for fire resistance
• New design software gives added flexibility and ease of design
• Backed by a BlueScope Steel warranty
• Nationwide technical support

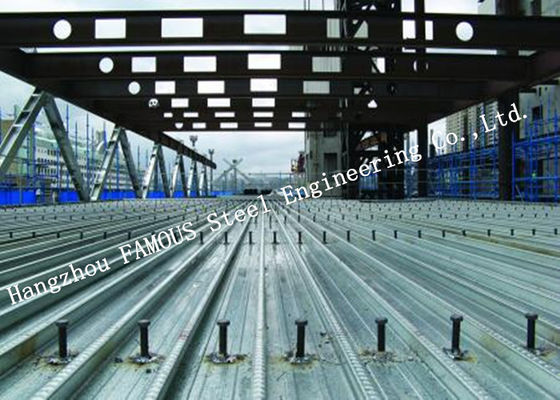

While FASEC Rebar-truss triangle welded metal decking system adapts rapid construction requirements of the main steel structure and provide fast work procedures. It can save a lot of construction time compared to traditional floor decking system. It can also improve the rigidity of the floor and save the amount of steel and concrete, so as to reduce the project budget.
The Surface embossed increase the bonding of floor deck and concrete, make the floor deck system has high-strength bearing capacity. It is totally fire-proof and can span long without middle propping.
So from cost saving and time saving view, the FASEC rebar-truss triangle welded metal decking system is better choice. However, in much of ready design, the deck is already designed and in avoiding of redesign, recalculation and re-submit/approval, we can also offer various customized steel floor deck profiles to cater for various contractors’ need, meanwhile we will offer various technical support in the aspects of load span and stress analysis etc.
