Low E Coating Warm Edge IGU Insulating Glass Units 4mm Thickness
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | FASEC |
| Certification: | ISO9001:2008;CE; 3C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300 sqm |
|---|---|
| Packaging Details: | Pallets Packaing or Packing in Bulk (Seaworthy packings into container or bulk vessel ) |
| Delivery Time: | 30 workdays |
| Payment Terms: | L/C,T/T, Western Union |
| Supply Ability: | 600,000 Square Meter per Year |
|
Detail Information |
|||
| Product Name: | Low-E Insulating Glass | Glass Thickness: | 4-25mm |
|---|---|---|---|
| Max Size: | 3660mm X 18000mm | Application: | Facade, Windows |
| Function: | Energy Efficient, Heat-insulation, Acoustic Insulation Etc | Glass Color: | Clear/Blue/Grey/Bronze/Tea/Green/ Or Others |
| Glass Shape: | Flat, Curved | Edge Work: | C-edge, Flat Edge, Polished Edge Etc |
| Cavity Filling With: | Air Or Argon | U Value: | 0.6-1.8 |
| Certification: | ISO9001,3C,ISO,CE/EN12150,AS/NZS2208,ANSI | Thermal Break Aluminum Frame: | Available |
| High Light: | EN12150 Insulating Glass Units,Warm Edge IGU Insulating Glass Units,4mm Thickness Insulating Glass Units |
||
Product Description
Triple Silver Low E Coating 6/12/6 Warm Edge Insulated Glass
Low-E Insulating Glass Units (IGUs)
Modern low-e coatings on glass are composed of 12 or more layers of metals in a 300 nanometer (0.0003 mm) thick coating, with some layers measuring only one nanometer (one billionth of a meter) in thickness. These coatings are applied by specialized coaters inside vacuum chambers. The latest low-e coating technology available incorporates three silver layers and multiple ceramic layers. These coatings are referred to as "triple silver" low-e coatings, and can offer as much as 70% visible light transparency and 30% better thermal performance compared to "double silver" low-e coatings.
The thickness and composition of the layers is specifically designed to result in a highly tuned optical filter that passes only visible light, while reflecting near infrared (solar heat) and far infrared (radiant heat). Analysis of spectral test data indicates triple silver coatings are very effective at passing only visible light, and there is little room for enhancing their thermal properties.
We are one of the leading suppliers of glass products in China. Our neutral-coloured, triple-silver low-emissivity glazing product offers a balance of year-round thermal comfort and visibility. It is always double glazed in an Insulating Glass Unit (IGU) in a variety of make-ups depending on the aesthetic and performance requirements.
Contact us and tell us about your project by email or phone, we’ll be happy to assist with any enquiry.
FASEC(Hangzhou)Window Wall Co.,Ltd.
Address: No.7 Yuyang Road,Lushan Industrial Park,Fuyang District,Hangzhou City,China
Email:fasec10@hzfasec.com
Phone:+86-571-87688170
Whatsapp&Wechat:+86-18072803246

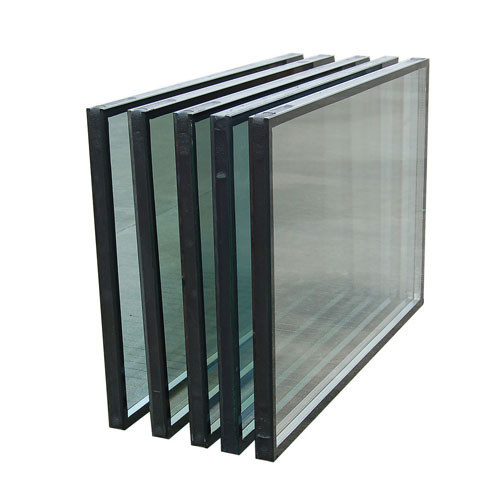

Product image
Application
| Our product line & services | ||||||||||||
| Product name | All types of processed glasses | |||||||||||
| Warranty | 3-5 years | |||||||||||
| Aftersale Service | Installation Guide and on-line Technical support | |||||||||||
| Project Solution Capability | Graphic design, 3D model design, total solution for individual projects, cross categories consolidation etc. | |||||||||||
| Application | Commercial/Residential buildings | |||||||||||
| Glass options | 1.Single glass:4, 6, 8, 10, 12mm (Tempered Glass) etc | |||||||||||
| 2.Insulated glass: 5mm+9/12/27A+5mm ( Double Tempered Glass) etc | ||||||||||||
| 3.Laminated glass:5+0.38/0.76/1.52PVB+5 ( Double Tempered Glass) etc | ||||||||||||
| 4.Decorative glass: printed, patterned etc | ||||||||||||
| 5.Low-e glass (Tempered Glass, insulating glass) | ||||||||||||
| 6.Tinted/Reflective/Frosted Glass (Tempered Glass) | ||||||||||||
| 7.Special glass (PV glass, self-cleaning glass, smart glass, bullet-resistant glass, AR glass etc) | ||||||||||||
| Glass color options | Clear, matt black; white; ultra silver; grey; bronze; blue, green, customized | |||||||||||
| Functions | Energy saving heat & sound insulation in different levels, waterproof etc | |||||||||||
| Design and dimension | Tailor made | |||||||||||
| Production standard | Following the shop drawings approved by customer; in compliance with U.S.,EU, AU. standards or other standards specified and agreed. |
|||||||||||
