Ventilation Aluminum Awning Window Openable Skylight Roof Windows
Product Details:
| Place of Origin: | Zhejiang,China |
| Brand Name: | FASEC |
| Certification: | EN 1090-2-2018;ISO3834 |
| Model Number: | RT689 |
Payment & Shipping Terms:
| Packaging Details: | By seaworthy wooden cases |
|---|---|
| Delivery Time: | 15-25DAYS |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 200 000M2 |
|
Detail Information |
|||
| Technique: | Clear Glass, Coated Glass, Tempered Glass, Double Glazed | Size: | 6+12a+6mm, 6+12ar+6mm,Custom Size |
|---|---|---|---|
| Usage: | Exterior Facade Curtain Wall,Outdoor Indoor | Quaity: | Grade A, No Bubbles, No Defects, No Scratches |
| Type: | Curtain Walls, Exposed Frame,Float Glass,Insulated Glass | ||
| High Light: | Ventilation Aluminum Awning Window,Aluminum Skylight Roof Windows,1.4mm Aluminum Awning Window |
||
Product Description

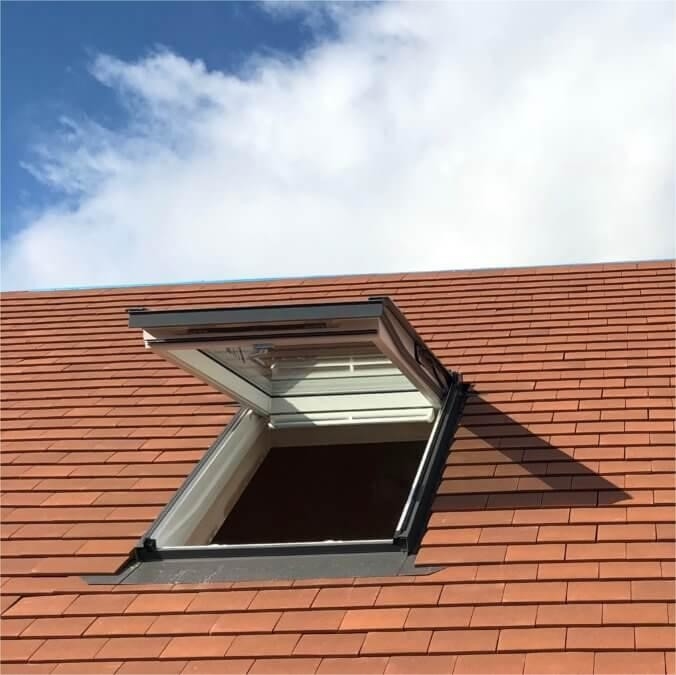

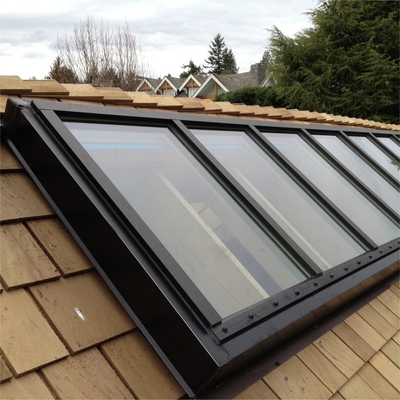

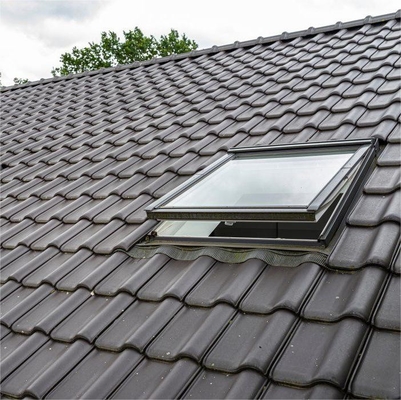

Roof window also is called skylight windows are open roof windows that create the effect of framing outdoor scenery like a picture frame.
Generally, it is composed of skylight frame, outer guard plate (wind deflector), rain shield, drainage groove valve plate, flashing plate, opening and closing mechanism, etc.
| Name/Model: | Roof window |
| Glass |
1.Double toughened glazing:6mm+12Air+6mm;6mm+12Ar+6mm and tinted; 2.Single toughened glazing:3/4/5/6/8/10/12/15/19/21//10.76mm 3:Laminated glazing:6mm+0.76+6mm |
| Finish |
1.Powder coating 2.Anodized 3.Electrophoresis 4.Wood grain 5.Flurine carbon coating |
| Standard/Certificate: | Comply with AS2047/CSA/DADE |
| Glass Standard: | Comply with AS2208/IGCC |
| Color choice: |
Standard:matt black;frosted black;white;Grey. Customized:Brozen;sliver grey;clear anodized;wood color and some others. |
| Thermal Insulation: | U value from 1.5 to 2.0 W/M2k |
| Window Rating: | N6 |
| Water penetration: | 450 pa |
| Ultimate strength | 4500pa |
| Air infiltration | 75/150 |
| Extrusion alloys: | 6063-T5 profile with 2.0-3.0 mm thickness for doors,1.4-2.0 for for windows |
Benefits of roof windows include:
Natural light: They increase the amount of natural light indoors, making rooms appear brighter
Cost-effective: Insulation from cold air and pollen; Energy-efficient
Roof window add lights, without sacrificing valuable wall space (and by extension, floor space). Skylights vent off heat build-up and moisture from indoors. Not only that, skylights are positioned so that you catch the natural light when the sun is at its highest points.
The main purpose of the skylight is to take advantage of natural light. Natural light in homes increases the comfort of living and positively influences health. Simple construction of the skylight guarantees hassle free use for a long time, which is particularly important when the residential skylights are installed in high ceilings.
| Aluminium Profiles | Aluminium Alloy | ALU Wall Thickness | Surface Finishing and Color |
| 6063-T5 | 1.2mm--2.0mm, Normally 1.4mm for window, 2.0mm for door | Anodized, Sliver & Bronze | |
| Powder Coating, colore should be confirm with buyer | |||
| Electrophoresis, Sliver& Champagne | |||
| PVDF | |||
| With thermal break aluminium system design for more energy saving function | |||
| Glass | Type | Thickness | Color |
| Float glass | Single: 4mm -12mm, Double Glazing (With 6A/9A/12A/27A space) | clear/super clear/ tinted blue/green/coffee brown/grey | |
| Insulated double glass | |||
| Insulated triple glass | |||
| Reflective glass | |||
| Low-E glass | |||
| Tempered glass | |||
| Laminated glass | |||
| Customized art glass | |||
| Parameters |
Sounds insulation: RW ≥ 30 dB Wind pressure resistance: 4500 pa Air permeation resistance: 70/150 Water resistance: 450mm N6 CLASS based on AS2047 STANDARD |
||
Characteristics:
- The main purpose of the skylight is to take advantage of natural light. Natural light in homes increases the comfort of living and positively influences health
- Low emission heat reflecting double glazing; available in tempered-tempered (G3) or tempered-laminated (G31) version
- Beautiful, hand selected, vacuum treated, lacquered timber frames
- Special perimeter gasket underneath the frame for increased insulation
- Internal gasket system protects frame and drywall from condensation
- Easy, “bracket free installation system”
- UV resistant cladding coated for longer resistance with polyester
- Suitable for roof pitches between 15-85°
- Better sizing improves ability to install and finish drywall without additional support
Ideal Applications:
Time-tested quality to naturally brighten hospitals, schools, offices, hotels, and manufacturing facilities.And out of reach entryways, living rooms and bedrooms that can benefit
from daylight.
Packaging & Delivery
Packing Details: Air bubble film inside+wooden crate outside.
Delivery Details: 15-30 days after confirmed the PI and drawing, vary by order quantity.
