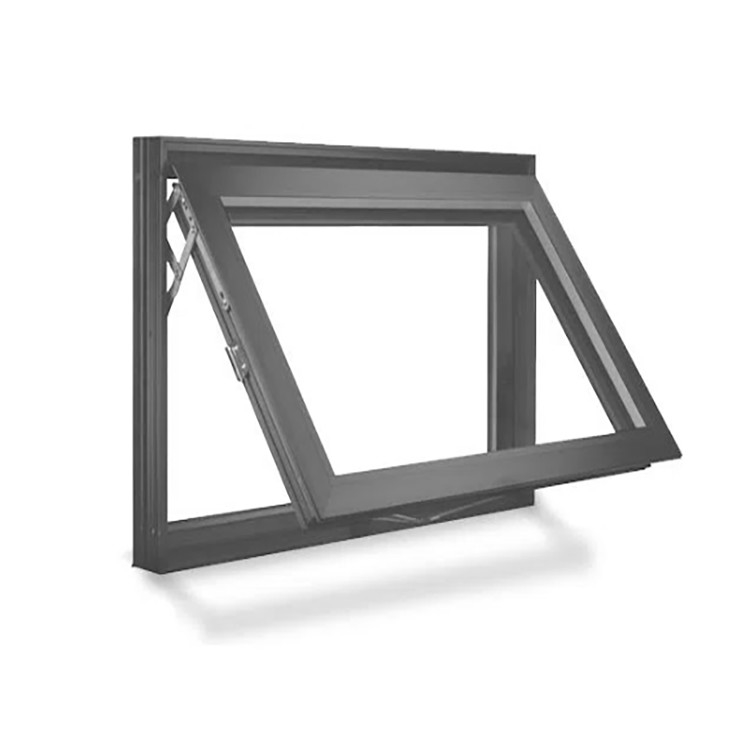

Chain Winder Hand Crank Aluminum Awning Window Dustproof Rainproof
Product Details:
| Place of Origin: | Zhejiang,China |
| Brand Name: | FASEC |
| Certification: | EN 1090-2-2018;ISO3834 |
| Model Number: | RT689 |
Payment & Shipping Terms:
| Packaging Details: | By seaworthy wooden cases |
|---|---|
| Delivery Time: | 15-25DAYS |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 200 000M2 |
|
Detail Information |
|||
| Technique: | Clear Glass, Coated Glass, Tempered Glass, Double Glazed | Size: | 6+12a+6mm, 6+12ar+6mm,Custom Size |
|---|---|---|---|
| Usage: | Exterior Facade Curtain Wall,Outdoor Indoor | Quaity: | Grade A, No Bubbles, No Defects, No Scratches |
| Type: | Curtain Walls, Exposed Frame,Float Glass,Insulated Glass | ||
| High Light: | Hand Crank Aluminum Awning Window,Chain Winder Aluminum Awning Window,Rainproof Aluminum Storm Windows |
||
Product Description
Awning windows are oriented horizontally. Wide windows are hinged at the top of the sash and push out at the bottom. Awning windows provide efficient ventilation all year round, and because the openings are downwards, there is no special consideration for weather disturbances.
Awning windows are most convenient where the space is wider rather than higher. A variety of hardware options suit various sizes.
Main features:
1. Optimize Sentilation Performance
When the awing window is open, the room can not only be naturally ventilated, but the most important thing is that the air enters the room from the window or side, and will not directly blow to the body. Especially when the temperature difference between indoor and outdoor is large, it can greatly reduce the number of people. Risk of catching a cold due to direct blowing. Especially in high-rise apartments or empty villa communities, the wind is very strong in spring and autumn, and the hanging state of the windows completely makes the exchange of indoor and outdoor air smooth, comfortable and soft.
2. Improve Safety
When the awing window is open, the window is open and ventilated. Compared with the casement window or the casement window, it is also very safe and has anti-theft performance. The reason is very simple-the thief can even reach into the window, but Unable to open the window, let alone enter the room.
3. Dust-proof and Rainproof
When the awing window is open, the airflow entering the room will first face the obstruction of the glass. The heavier dust particles in the air are less likely to "turn sharply" and are naturally blocked outside. On a rainy day, because the rain falls from above, even if it shifts into the room due to the wind direction, it will be blocked by the glass of the overhanging window.
| Name/Model: | Window |
| Glass |
1.Double toughened glazing:6mm+12Air+6mm;6mm+12Ar+6mm and tinted; 2.Single toughened glazing:3/4/5/6/8/10/12/15/19/21//10.76mm 3:Laminated glazing:6mm+0.76+6mm |
| Finish |
1.Powder coating 2.Anodized 3.Electrophoresis 4.Wood grain 5.Flurine carbon coating |
| Standard/Certificate: | Comply with AS2047/CSA/DADE |
| Glass Standard: | Comply with AS2208/IGCC |
| Color choice: |
Standard:matt black;frosted black;white;Grey. Customized:Brozen;sliver grey;clear anodized;wood color and some others. |
| Thermal Insulation: | U value from 1.5 to 2.0 W/M2k |
| Window Rating: | N6 |
| Water penetration: | 450 pa |
| Ultimate strength | 4500pa |
| Air infiltration | 75/150 |
| Extrusion alloys: | 6063-T5 profile with 2.0-3.0 mm thickness for doors,1.4-2.0 for for windows |
| Aluminium Profiles | Aluminium Alloy | ALU Wall Thickness | Surface Finishing and Color |
| 6063-T5 | 1.2mm--2.0mm, Normally 1.4mm for window, 2.0mm for door | Anodized, Sliver & Bronze | |
| Powder Coating, colore should be confirm with buyer | |||
| Electrophoresis, Sliver& Champagne | |||
| PVDF | |||
| With thermal break aluminium system design for more energy saving function | |||
| Glass | Type | Thickness | Color |
| Float glass | Single: 4mm -12mm, Double Glazing (With 6A/9A/12A/27A space) | clear/super clear/ tinted blue/green/coffee brown/grey | |
| Insulated double glass | |||
| Insulated triple glass | |||
| Reflective glass | |||
| Low-E glass | |||
| Tempered glass | |||
| Laminated glass | |||
| Customized art glass | |||
| Parameters |
Sounds insulation: RW ≥ 30 dB Wind pressure resistance: 4500 pa Air permeation resistance: 70/150 Water resistance: 450mm N6 CLASS based on AS2047 STANDARD |
||
Packaging & Delivery
Packing Details: Air bubble film inside+wooden crate outside.
Delivery Details: 15-30 days after confirmed the PI and drawing, vary by order quantity.
Our Company
Famous Door&Window Co.,Ltd is a comprehensive enterprise that major work on the design, production and after sale of middle and high end aluminum alloy door and window. Our workshop has an area of 50000 square meters. Besides, we have advanced product equipment and technology support, so it has became a strong company in Door&Window Industry. What's more,most of our hardware are German's top brand,such as G-U,SIEGENIA,HOPO,ROTO and SOBINCO,which are high praised for very good quality.
"Quality first, competitive price and high quality service" is our enterprise concept that we always insist. So we have through the ISO9000 certification, and all of our products should go through strict quality monitoring.
In the future, we will continue to strengthen the monitoring of our quality and provide the best products to our customers.
