Product Details:

Place of Origin: CHINA
Brand Name: FESEC
Certification: EN 1090-2-2018; ISO3834
Model Number: Glass Balustrade 01

Payment & Shipping Terms:

Minimum Order Quantity: 10 meters
Price: USD50-200/meter
Packaging Details: Cartons and plts
Delivery Time: 20-38 workdays
Payment Terms: T/T, L/C
Supply Ability: 5,000 Meter/ per Month
Get Best Price Contact Now

Detail Information

Product Name: Glass Balustrade Design Style:: Modern
Material: Stainless Steel+ Toughened Glass Mounted:: Flooring
Installation:: Easy Install
High Light:

102mm Handrail Glass Balustrade

,

62mm Handrail Glass Balustrade

,

Anodizing aluminum glass railing

Product Description

Customized safety residential frameless handrail glass balcony balustrade
Aluminium Frame Decking Balcony Railing Handrail Glass Balustrades
The glass blastrade system has a wide range of uses. It is ideal for glass balconies, patio areas and terraces, and can be an effective safety handrail system. There are many options when choosing a glass railing system design.

The height of the handrail of indoor stairs, measured from the center line of the step to the upper skin of the handrail, should not be less than 900mm.
When the horizontal armrest is longer than 500mm, its height should not be less than 1000mm.

The height of the outdoor stair railing should not be less than 1050 mm, and the height of the middle and high-rise residential buildings should not be less than 1100 mm.
When the width of the stairwell is greater than 200 mm, it is not suitable to choose a lattice that is easy for children to climb.
The clearance between the vertical railings of the railing should not be greater than 110 mm.
When railings and handrails are transferred up and down or on a plane, they should be connected.



Profile materialCarbon steel , Aluminum ,stainless steel
Handrail Pipe12.7mm ,16mm,19mm,25.4mm,31.8mm,38.1mm,50.8mm,63mm,76mm 40*40mm 50*50mm or make as buyer requirements
SurfaceCustomized
ApplicationBalcony handrail/outdoor railing/indoor handrail/indoor staircase etc
Height of the balustrade850-1200mm or customized
Glass fittingSuit for single or Double tempered laminated glass or customized


Appearance: Bright color and no fading.
Impact resistance: sturdy and durable, high impact resistance.
Long service life: One-time investment, life-long enjoyment.
High temperature resistance, low temperature resistance, salt spray resistance, and moisture resistance.
Low maintenance cost: maintenance-free and easy to clean.
Installation: modular systems for easy installation and peace of mind.

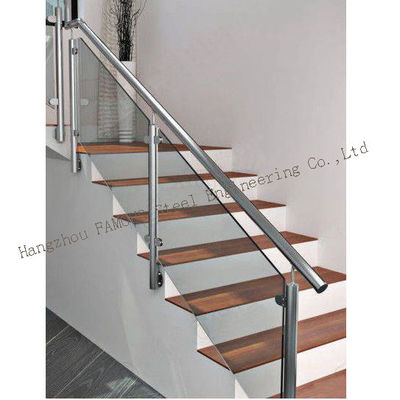

Staircase balustrade with tempered glass
Handrail: ¢50.8(diameter)x1.3mm(tube thick) ,SUS 304 ,Brush finish
Post:¢50.8(diameter)x1.3mm(tube thick) , ,SUS 304,Brush finish
Clamp for fix glass: 12mm temper glass
distance span about 1000mm
Concrete screws:M8*80mm, SUS 304 ,Brush finish


Aluminium Frame 62x102mm Handrail Glass Balustrade Anodizing 0




Types of railingSurface treatment
Standoff glass railingdiameter 50.8mm; 42.4mm; 38mmMirror finish
Baluster glass railingdiameter 50mm/38mm circular tube balusterStain finish/Mirror finish
50*50/40*40/38*38mm square tube baluster
Aluminum U channel glass railingW62*H102mm(for 10-15mm glass)
W70.5*H120mm(for 19-24mm glass)
W45*H120mm(for 12mm to 6+1.52
/1.14+6mm tempered laminated glass)
Anodizing
Spigot glass railingRound: diameter 42mm, high 160mmStain finish/Mirror finish
Baseboard diameter 100mm, 8mm
Square: 40*40mm, high 160mm; 50*50mm, high 200mm
Baseboard diameter 100*100mm, 8mm
Wire / Cable railingRound tube baluster: 38.3; 42.4; 50.8mmStain finish/Mirror finish
Square tube baluster: 40*40; 50*50mm
Wire: 1-16mm
Rod railingRound tube baluster:diameter 38.1; 42.4; 50.8mm
Square tube baluster:38*38; 40*40; 50*50mm
Rod: diameter 8; 10; 12.7mm
Stain finish/Mirror finish
Glass Panel12mm Glass PanelsGlass OptionClear,Frosted or Tinted
Height1000mm/1067mm/1100mm or customizedMount TypeTop
Top Capdiameter 38.1/42.4/50.8mm cap handrail with gasketCompatible fixingsWood, Metal, Concrete
28*30mm cap handrail with gasket
Standard Height1000/1067mm/1100 to top of railCompatible fixingsWood, Metal, Concrete
Or customized height
Stainless Steel304/316/316L/2205Glass Thickness10-24mm glass








Type of balustrade:
Aluminium Frame 62x102mm Handrail Glass Balustrade Anodizing 1
Aluminium Frame 62x102mm Handrail Glass Balustrade Anodizing 2
Aluminium Frame 62x102mm Handrail Glass Balustrade Anodizing 3
Aluminium Frame 62x102mm Handrail Glass Balustrade Anodizing 4
