T5 T6 Aluminum Exterior Storm Windows , 6063 Aluminium Louver Window
Product Details:
| Place of Origin: | China |
| Brand Name: | FESEC |
| Certification: | EN 1090-2-2018; ISO3834 |
| Model Number: | W0002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10SQM |
|---|---|
| Price: | USD90-200/SQM |
| Packaging Details: | Wooden fixed packaging,and Standard seaworthy packing of container |
| Delivery Time: | 20-50 work day |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200,000SQM/month |
|
Detail Information |
|||
| Item Name: | Adjustable Ventilation Louver Jalousie Window | Function: | Security, Decoration |
|---|---|---|---|
| Material: | Aluminum Frame+ Glass | Surface Treatment: | Powder Coating/PVDF |
| Glass Type: | Double Tempered Glass | Open Style: | Swing |
| Hardware: | China Top Hardware | Size: | Customized As Order |
| Color: | Customized As Order | ||
| Highlight: | T6 Aluminum Exterior Storm Windows,T5 aluminum exterior storm windows,6063 Aluminium Louver Window |
||
Product Description
Exterior and Interior Aluminium Toughened Glaz Adjustable Ventilation Louver Jalousie Window
Glass louver open up a room to the outside by allowing fresh air and light in
without obstructing the view. Plus, glass louvers keep out the elements like
rain and wind while providing needed indoor ventilation.
Glass jalousie window made by tempered glass and strong aluminum material.
It is a modern style to combine them together.
The jalousie glass window can be opened to four degree as different ventilation requests. It is also can add detachable mesh as customer using habit, the mesh also have different materials to choose.
| Profile | 1.6063-T5/T6 normal aluminum, thermal break aluminum | |||
| China top brand | ||||
| Glass | 1.Double tempered glazing:5mm+12A(Air)+5mm; 5mm+12A+5mm tinted; 5mm+12A+5mm Low-E; 5mm+27A+5mm | |||
| 2.Single tempered glazing: 3/4/5/6/8/10/12/15/19/21mm | ||||
| 3.Laminated glazing: 5mm+0.76+5mm, 5mm+0.38+5mm | ||||
| Hardware | 1.Customized | |||
| 2.Chinese brand: Kinlong, Hopo | ||||
| Mesh | 1.Stainless steel security mesh | |||
| 2.Aluminum security mesh | ||||
| 3.Fiberglass flyscreen | ||||
| 4.Retractable flyscreen | ||||
| Surface treatment | 1.Powder coating | |||
| 2.Anodized | ||||
| 3.Electrophoresis | ||||
| 4.Woodgrain | ||||
| 5.Fluorine carbon coating | ||||
| Parameters | Double glass sliding windows | |||
| Sounds insulation: RW ≥ 30 dB | ||||
| Wind pressure resistance: 4500 pa | ||||
| Air permeation resistance: 70/150 | ||||
| Water resistance: 450mm | ||||
Material Selection:
Aluminum Frame:50 series, 55 series, 60 series,70 series ,80 series ,85 series, 90 series,100series and so on.
Single Glass:5mm/6mm/8mm/10mm/12mm...
Double Glass:5+6A+5 /5+9A+5 /5+12A+5/...
Frosted Glass:5mm/6mm/8mm/10mm/12mm...
Reflective Glass::5+6A+5 /5+9A+5 /5+12A+5/...
Low-E Glass :5mm+12A+5mm
Color: customized
| Name: | Aluminium jalousie window |
| Material: | Aluminum alloy |
| Color: | White |
| Louver: | Tempered glass |
| Mesh: | Detachable mosquito net |
| Hardware: | Chinese brand, German brand, American brand |
| Opening: | Operable |
| Application: | Residential, Commercial, Office |

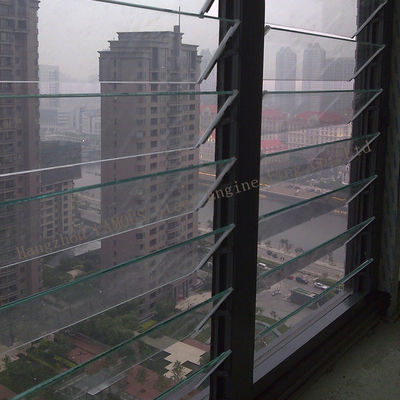

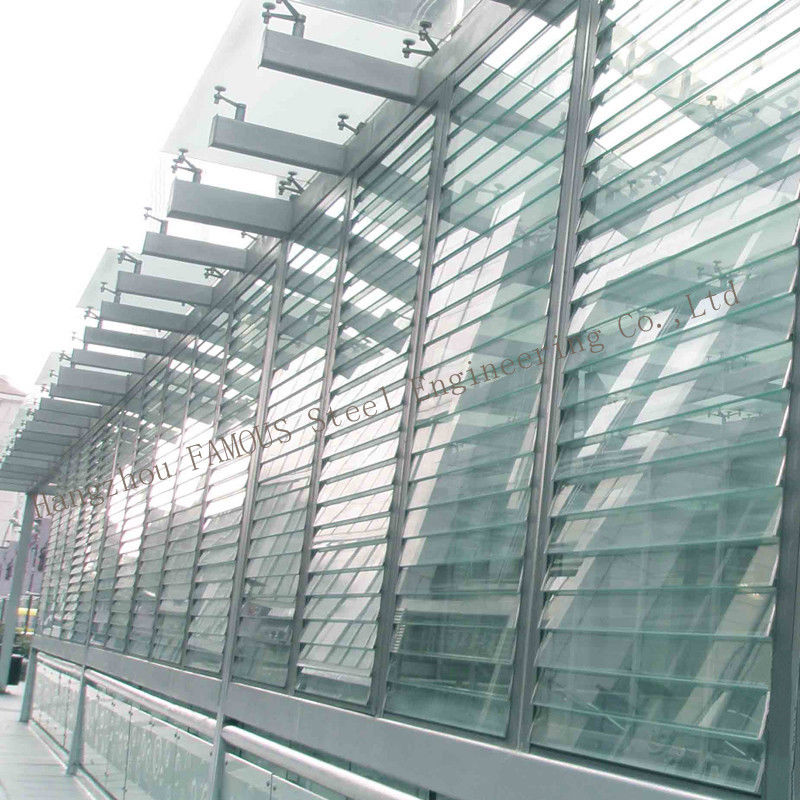

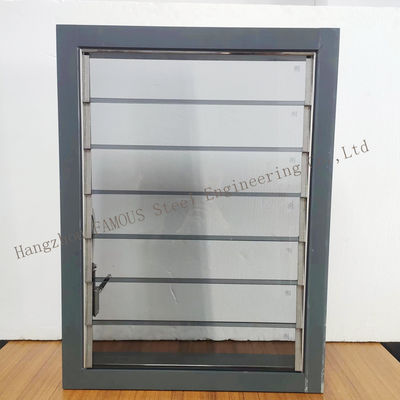

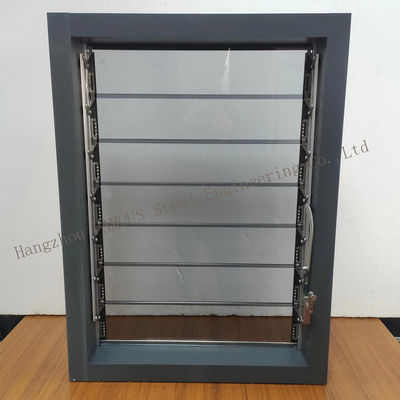

Various series model window display:
