Black Steel Frame Grill Toughened Glass Windows Doors Vintage Style
Product Details:
| Place of Origin: | China |
| Brand Name: | FESEC |
| Certification: | EN 1090-2-2018; ISO3834 |
| Model Number: | S-W001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10SQM |
|---|---|
| Packaging Details: | Wooden fixed packaging,and Standard seaworthy packing of container |
| Delivery Time: | 20-50 work day |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200,000SQM/month |
|
Detail Information |
|||
| Item Name: | Swing Casement Aluminum Glass Windows | Function: | Security, Decoration |
|---|---|---|---|
| Material: | Steel Frame+ Glass | Surface Treatment: | Powder Coating |
| Glass Type: | Single Double Tempered Glass | Open Style: | Swing |
| Hardware: | China Top Hardware | Size: | Customized As Order |
| Color: | Customized As Order | ||
| High Light: | Swing Toughened Glass Windows Doors,Grill Toughened Glass Windows Doors,Swing Casement Aluminum Glass Windows |
||
Product Description
Description:
Window products with solid-web steel profiles as the outer frame and leaf frame are called solid-web steel windows.
According to the specifications of the materials used, there are two types: 25MM solid-web solid-web steel windows and 32MM solid-web solid-web steel windows.
A force-bearing member is analyzed from the force status, such as a steel beam, the middle part of the cross section bears less force and can be cut out, so there is a difference between the solid web type and the lattice type.
If the excavated steel is strengthened to the larger part of the force, so that the cross-section size is larger than the solid-web type under the premise of the same consumables, and of course the load-bearing capacity is increased.
For example, the cross section of the axial force member is divided into two types: solid web and lattice type.
Among them, the solid web type is divided into section steel sections (including ordinary section steel and thin-wall section steel), and combined section (steel plate combination and section steel combined section).
Historical preservation windows and doors,High performance,
double weather-stripped heavy intermediate steel windows and doors,
Fire rated steel windows and doors
OEM/ODM is available and welcomed for our company.
Classified according to windows opening way:
French style, slim frame, fixed partition, swing casement, awning, sliding, folding, pivot, sunlight,etc.

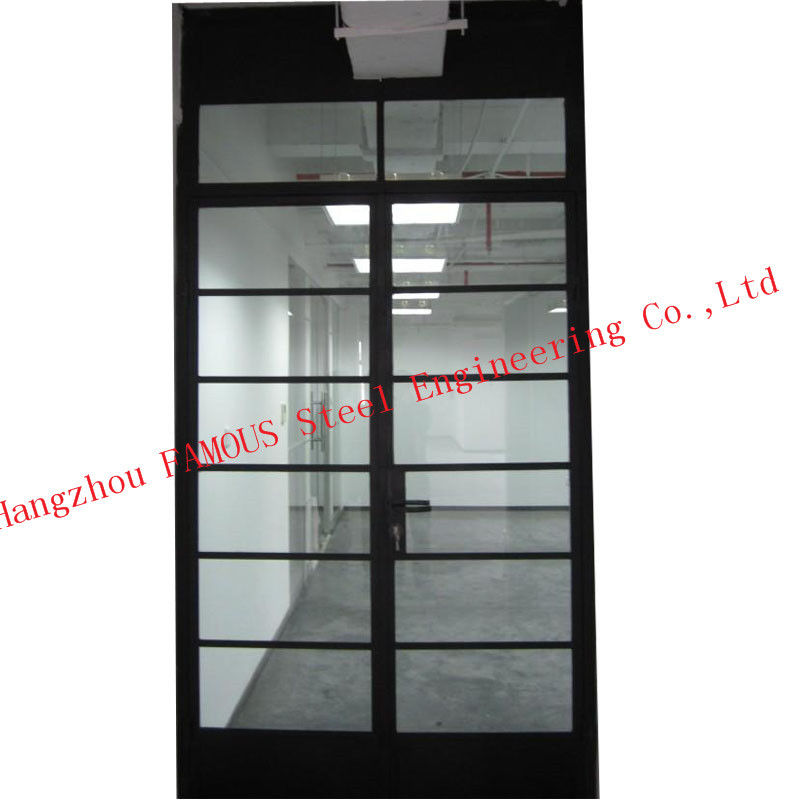

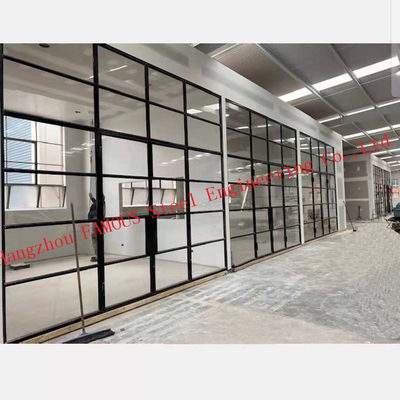

Various series model window display:
Test Data reference:
| Product Name | Black steel frames grill design iron windows |
| Profile | Carbon steel |
| Finish | Hot dipped galvanized / Powder coated / Fluorine carbon paint |
| Performance | anti-rust, anti-corrosion, waterproof, windproof, heat insulation, energy saving, thermal break, fire rated, environmental protection |
| Style | French style, slim frame, fixed partition, swing casement, awning, sliding, folding, pivot, sunlight room, window wall |
| Standard | USA Standard, AU Standard, EN Standard |
| Design | Standard and Custom, provide CAD drawings |
| Hardware | Customized |
| Color | Standard and Customized |
| Glass | toughened glass single/double/ insulating/laminated glass, can choose Low-e and argon filled |
1. It is suitable for general industrial buildings and auxiliary buildings.
When used in a humid or corrosive environment, a coating with strong corrosion resistance should be selected for coating, and maintenance during use should be strengthened.
2. The wind pressure resistance value is not more than 0.70kPa, and the deflection is controlled within 1/160 of the span.
The wind pressure resistance of the basic mid-hung window and the basic fixed window is suitable for 0.70kPa, and the selection should be determined according to the regional wind pressure value and the height.
The wind pressure resistance strength of the basic casement window is comprehensively calculated according to the wind pressure resistance strength that the 3mm thick glass can withstand.
3. Processing and inspection rules: The profiles of various types of basic windows or doors should meet the requirements of our National standard GB2597 and GB/T700.
4. After the steel doors and windows are processed and assembled, the oil and rust should be removed, and the surface should be coated with an anti-rust primer.
The paint layer should be thin and uniform, and there should be no obvious defects such as paint buildup or paint leakage.

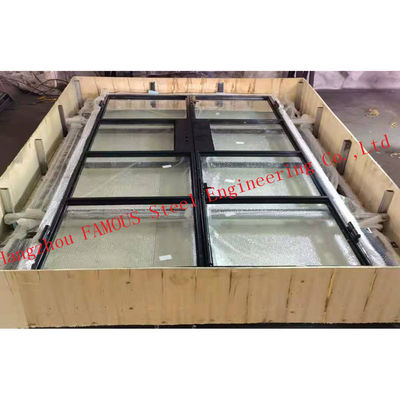

Protect packing:
