Hurricane Double Glazed Tilt Aluminum Storm Windows PVDF Surface
Product Details:
| Place of Origin: | China |
| Brand Name: | FESEC |
| Certification: | EN 1090-2-2018; ISO3834 |
| Model Number: | W0006 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10SQM |
|---|---|
| Packaging Details: | Wooden fixed packaging,and Standard seaworthy packing of container |
| Delivery Time: | 20-50 work day |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200,000SQM/month |
|
Detail Information |
|||
| Item Name: | Aluminum Heat Insulation Tilt & Turn Windows | Function: | Security, Decoration |
|---|---|---|---|
| Material: | Aluminum Frame+ Glass | Surface Treatment: | Powder Coating/PVDF |
| Glass Type: | Double Tempered Glass | Open Style: | Swing |
| Hardware: | China Top Hardware | Size: | Customized As Order |
| Color: | Customized As Order | ||
| High Light: | Hurricane Proof Aluminum Storm Windows,Double Glazed Tilt Aluminum Storm Windows,PVDF Surface Aluminum Storm Windows |
||
Product Description
Energy Saving Hurricane Proof Glass Aluminum Frame Double Glazed Tilt and Turn Windows
Description:
Tilt&turn window is a window system that can be opened indoors and can be hung inward for ventilation. It is widely used in Europe and is different from American windows and outer windows.
Features:
1. Ventilation. Because the inverted position is another way to open the casement window, it allows the room to circulate naturally with the natural air, and the indoor air is fresh, while eliminating the possibility of rainwater entering the room. The fresh air will undoubtedly create a comfortable living environment for people.
2. Security. The linkage hardware arranged around the window sash and the various functions of the handle for indoor operation are fixed on the window frame when the window sash is closed, so the safety and anti-theft performance are excellent.
3. Easy to clean windows. Simple operation and linkage handle can make the window sash go indoors. It is convenient and safe to clean the outer surface of the window.
4. Practicality. It avoids occupying indoor space when the inner opening window is opened, and it is inconvenient to hang curtains and install a lifting clothes rail.
5. Good sealing and heat preservation performance. Through multi-point locking around the window sash, the sealing and heat preservation effect of the doors and windows are ensured.
The inverted function can not only ventilate, but also resist wind, which saves indoor space, is convenient for hanging curtains, and can prolong the service life of hardware.
Aluminum Frame Glazed Windows
Classified according to windows opening way:
Swing(Casement ) window,Awing (Hopper)window,Sliding window,Folding window,Fixed window,Single or Double Hung window,Tilt&Turn window,Sash window, Shutter(Louver) window,Pivot window
Material Selection:
Aluminum Frame:50 series, 55 series, 60 series,70 series ,80 series ,85 series, 90 series,100series and so on.
Single Glass:5mm/6mm/8mm/10mm/12mm...
Double Glass:5+6A+5 /5+9A+5 /5+12A+5/...
Frosted Glass:5mm/6mm/8mm/10mm/12mm...
Reflective Glass::5+6A+5 /5+9A+5 /5+12A+5/...
Low-E Glass :5mm+12A+5mm
Color: customized

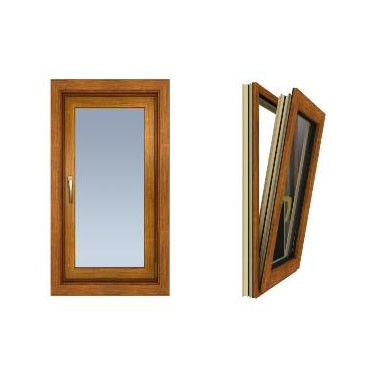

Various series model window display:
Production Introduction:
| Profile | Aluminum Alloy | 6063-T5,thermal broken/non thermal break |
| Thickness | 1.4mm/2.0mm | |
| Surface Treatment | Powder coated/Anodized/Electrophoresis | |
| Color | Customized (white,black,silver etc.Any color is available by INTERPON or COLOR BOND) | |
| Glass | Type | Single/Double/Laminated/Low-e/Tinted/Reflective tempered glazing glass |
| Thickness | 6mm,5mm+12Air/Argon gas+5mm,customized | |
| Color | clear,obscure,green,gray etc. | |
| Hardware | Brand | Chinese Kinglong |
| Color | White,Black,Silver | |
| Sealant | EPDM | |
| Flyscreen | Retractable Fiberglass | |
| stainless steel | ||
| Serviceability wind pressure | 3000Pa | |
| Water pressure | 450Pa | |
| Sound Proof | 45Db | |
