Grey Laminated PVB Sound Insulation Glass Windows With T4 Temper
Product Details:
| Place of Origin: | China |
| Brand Name: | FESEC |
| Certification: | EN 1090-2-2018; ISO3834 |
| Model Number: | AL-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 Tons |
|---|---|
| Price: | USD-2000-5000 |
| Packaging Details: | 1.. Wrap with shrink film exterior; 2. PE shrink film; 3. Packed according to customer reques. |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 KG/ per Week |
|
Detail Information |
|||
| Material: | 6.38 Mm Light Grey Laminated PVB Sound Insulation Glass Aluminum Windows | Deep Processing Ability: | CNC,Drilling,Bending,Welding,Precise Cutting,etc. |
|---|---|---|---|
| Application: | Windows&doors,kitchen,curtain Wall,glass Wall,LED Strip,etc | Color: | Silver, Black, Grey, Gold, Bronze, Champagne Etc |
| Temper: | T4, T5, T6 | ||
| High Light: | Grey Laminated Insulation Glass Windows,PVB Sound Insulation Glass Windows,T4 Temper Insulation Glass Windows |
||
Product Description
6.38 mm Light Grey Laminated PVB Sound Insulation Glass Aluminum Windows
The structure with the windows’ subhead subsill is more reasonable, which can enhance the stability of the doors&windows opening and reduce the maintenance cost, and extend the service life of the doors& windows.
The door and window aluminum profile is a door and window frame decoration material made of aluminum alloy as raw materials.
In the door and window material, the material connected to the wall. Its main feature is that the surface is more planar with the wall facing, fixed to the wall, cannot move.
Aluminum Windows and doors frame made materials mainly include: 35 series, 38 series, 40 series, 60 series me, 70 series, 90 series, etc. The so-called 35, 38 refers to the width of the aluminum alloy profile main frame is 35 mm, 38 mm, respectively.
The quality of the aluminum alloy door and window can be roughly judged from the material (aluminum profile), the surface treatment of aluminum material and the internal processing quality, the price of aluminum alloy doors and windows.
| Technical Data of Extrusion Aluminum Profiles | ||||||
| Alloy | Temper | Thickness | Tensile | Yield | Vickers | Webster |
| Strength | Strength | Hardness | Hardness | |||
| 6005 | T6 | ≤5 | ≥270MP | ≥225MP | ||
| T6 | 5<e≤10 | ≥260MP | ≥215MP | |||
| T6 | 10<e≤25 | ≥250MP | ≥200MP | |||
| 6060 | T6 | ≤3 | ≥190MP | ≥150MP | ||
| T6 | 3<e≤25 | ≥170MP | ≥140MP | |||
| 6061 | T6 | ≥265MP | ≥245MP | HV≥58 | HW≥8 | |
| 6063 | T5 | ≥160MP | ≥110MP | HV≥58 | HW≥8 | |
| T6 | ≥205MP | ≥180MP | HV≥58 | HW≥8 | ||
Performance :
1, good insulation
K value / u value - heat transfer coefficient
Ordinary aluminum alloy K = 207 w / (m2k)
Broken bridge aluminum alloy K = 2 ~ 4 w / (m2k)
2, good soundproof
Careful structure design, strict seams. Test
3, the airtightness is good
4, good water tightness
5, wind pressure
Both side decoration surfaces are aluminum alloys, and the wind pressure is good.
6, fire resistance
The aluminum alloy is a metal material and does not burn. The middle of the nylon 66 has a flame retardant, does not burn. It is a recognized flame retardant material
7, anti-theft
Thermal Brokenaluminum doors and windows configure excellent hardware
| Application | Aluminum construction (window and door / wall curtain) |
| Material | 6000 series Aluminum alloy,like 6063,6061 |
| Temper | T3-T8 |
| Surface Treatment | Mill-Finished, Anodizing, Powder Coating, PVDF, Electrophoresis, Wood Grain, Polishing, Brushing, etc |
| Machine | High Precision CNC Machining |
| Colour | Silver, champagne, Bronze, Golden, Black, White, Gray, Sand coating, Anodized Acid, Alkali, and wood texture, or Customized |
| Film Standard | Anodized:7-23 μ , Powder coating: 60-80 μ , Electrophoresis film: 12-25 μ |
| Length | 3.0-7.2 Meters or Customized |
| Thickness | 0.4mm-20mm or Customized |
| Application | Buildings, Constructions and Decorations |

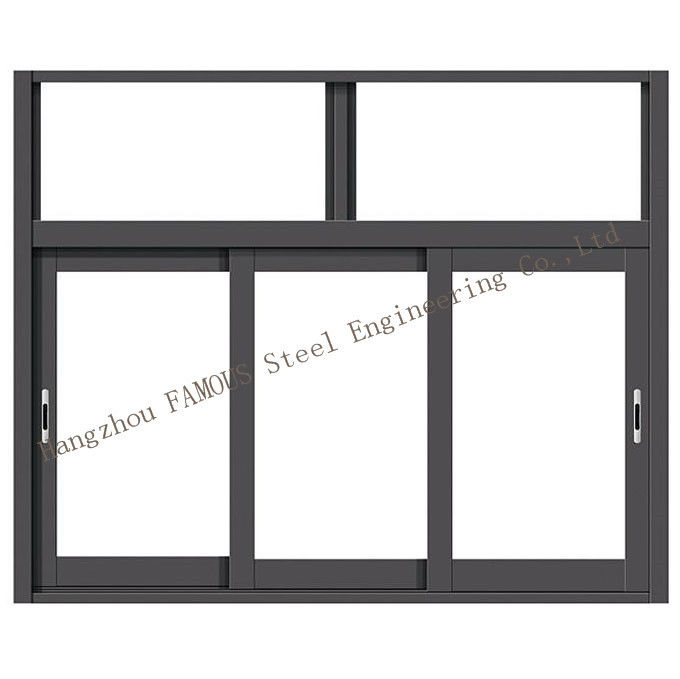

| Profile type | 1. Sliding window and door profiles |

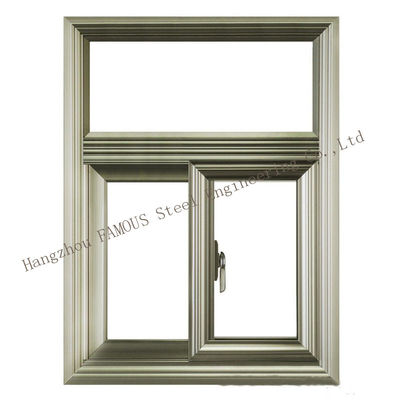

| 2. Casement window and door profiles | |
| 3. Louver window and door profiles | |
| 4. Bi-fold window and door profiles | |
| 5. Pivot window and door profiles | |

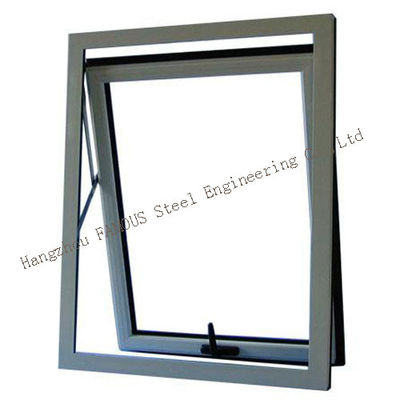

| 6. Awning window profiles | |
| 7. Heating insulation / thermal break profiles | |
| 8. Wall curtain profiles |
