Toughened Glass Horizontal Bifold Windows For Cafe Restaurant
Product Details:
| Place of Origin: | China |
| Brand Name: | FESEC |
| Certification: | EN 1090-2-2018; ISO3834 |
| Model Number: | W0010 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10SQM |
|---|---|
| Packaging Details: | Wooden fixed packaging,and Standard seaworthy packing of container |
| Delivery Time: | 20-50 work day |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200,000SQM/month |
|
Detail Information |
|||
| Item Name: | Store-specific American-style Lifting Up And Down Folding Windows | Function: | Security, Decoration |
|---|---|---|---|
| Material: | Aluminum Frame+ Glass | Surface Treatment: | Powder Coating/PVDF |
| Glass Type: | Double Tempered Glass | Open Style: | Swing |
| Hardware: | China Top Hardware | Size: | Customized As Order |
| Color: | Customized As Order | ||
| High Light: | Toughened Glass Horizontal Bifold Windows,Cafe Restaurant Horizontal Bifold Windows,Swing Open Horizontal Bifold Windows |
||
Product Description

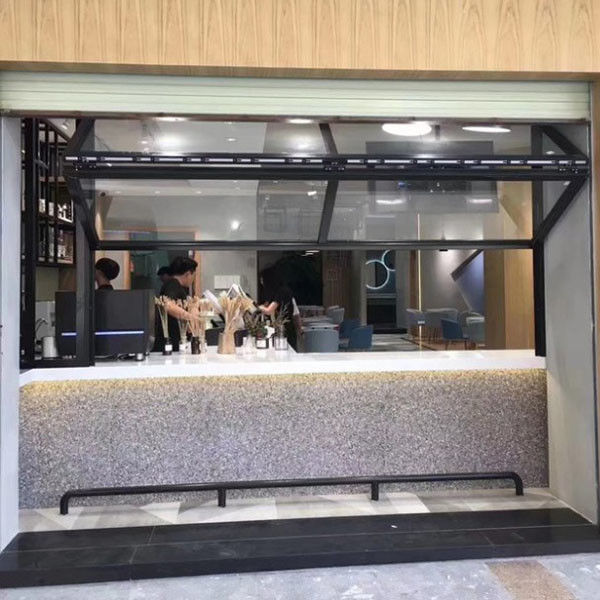

Store-specific American-style lifting Up and Down Folding Windows
Description:
The new type of folding windows that can be opened becomes a "rain shed" with excellent lighting, and when closed, it becomes a glass wall integrated with the house.
Advantages of aluminum lift upper folding window:
1. The appearance is fashionable, beautiful, atmospheric, and has a good visual beauty.
2. The window sashes are folded upward to provide a wide view, and do not occupy the bottom space, and the folded sash can be used as a sunshade canopy.
3. Patented manual lifting, easy and effortless, suitable for any occasion.
4. Hidden accessories, beautiful and more durable.
5. The folding fan can hover at any position, adjust the height according to needs, and the glass selection is diversified.
6. It is especially suitable for various street shops such as bars, restaurants, coffee shops, milk tea shops, cake shops and so on.
the weight of the frame is moderate, and the combination of hidden accessories makes it easier to lift.
Light 40 series:
frame cross section 40mm, wall thickness 1.2mm, single glass area can be made up to 2.5 square meters.45 degree angle is more beautiful .
Medium 55 series:
The cross-section width of the frame is 55mm, the wall thickness is 1.4mm, the single glass area can be made up to 3.5 square meters, and the hollow glass can be made up to 1.5 square meters.
Heavy 55 series Windows:
The cross-section width of the frame is 55mm, and the wall thickness is 1.4~3.0mm. The single glass area can be made up to 7 square meters, and the hollow glass can be made up to 2.5 square meters.
Window characteristics:
Hidden accessories, hovering at will, safe and easy to use.
Roll-type lifting accessories, easy lifting, smooth sliding and durable, non-exposed hydraulic rod air rod.
Especially suitable for street shops, milk tea shops, coffee shops, catering snack bars
Material Selection:
Aluminum Frame:40 series, 55 series, so on.
Single Glass:5mm/6mm/8mm/10mm/12mm...
Double Glass:5+6A+5 /5+9A+5 /5+12A+5/...
Low-E Glass
Color: customized
Fold on the non-exposed hydraulic rod, more beautiful and easier to use
Folding window composed of two or more mutually hinged windows
More affordable and more practical, manually can hover up and down folding windows at will
Various series model window display:
Production Introduction:
| Item | Aluminium Sun Shutters Outdoor Sun Shade Sliding Louvers |
| Aluminium alloy | 6063, 6061, 6005, 6463, 7075, etc. |
| Temper | T3-T8 |
| Size | Customizable |
| Shape | Square, flat, round, hollow, oval, triangle, U-profiles, L-profiles, etc. |
| Finishing | Mill, anodized, powder coated, electrophoresis, wood grain, etc. |
| Color | Customizable |
| Application | Windows, doors, curtain walls, glass walls, furniture, ceilings, etc. |
| Deep Process | CNC, drilling, milling, cutting, welding, bending, assembling |
| Production Capacity | 3000+ sqm meter |
| Warranty | 10 years, 15 years, 20 years |
Protect packing:
