T6 Aluminium Frame Toughened Glass Roof Window 2.0mm Thickness
Product Details:
| Place of Origin: | China |
| Brand Name: | FESEC |
| Certification: | EN 1090-2-2018; ISO3834 |
| Model Number: | W0001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10SQM |
|---|---|
| Packaging Details: | Wooden fixed packaging,and Standard seaworthy packing of container |
| Delivery Time: | 20-50 work day |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200,000SQM/month |
|
Detail Information |
|||
| Item Name: | Roof Attic Low-e Toughened Glass Skylight Windows | Function: | Security, Decoration |
|---|---|---|---|
| Material: | Aluminum Frame+ Glass | Surface Treatment: | Powder Coating/PVDF |
| Glass Type: | Double Tempered Glass | Open Style: | Swing |
| Hardware: | China Top Hardware | Size: | Customized As Order |
| Color: | Customized As Order | ||
| Highlight: | Aluminium Frame Glass Roof Window,T6 Aluminium Glass Roof Window,2.0mm Thickness Glass Roof Window |
||
Product Description

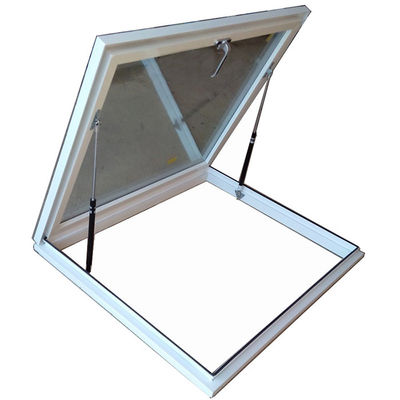

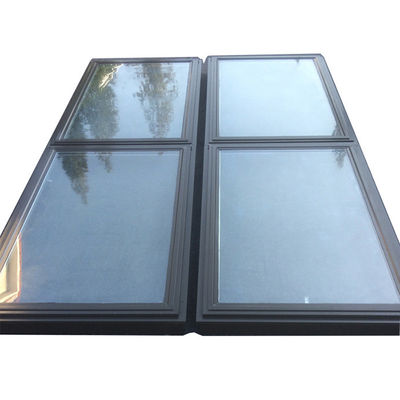

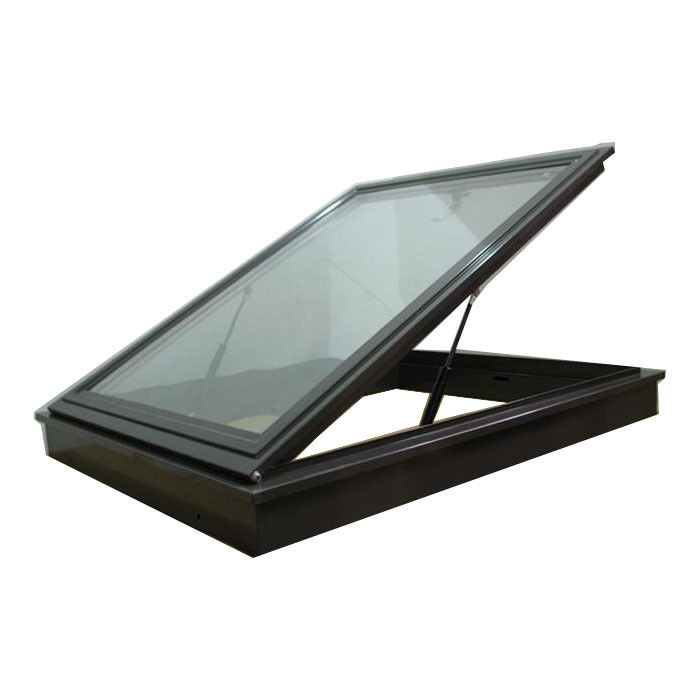

Aluminium Frame Garden House Awing Roof Attic Low-e Toughened Glass Skylight Windows
Description:
Icluding the casement sunroof body, the front part of the inner side of both sides of the sash frame is symmetrically equipped with support plates,
The rear parts of the inner sides of the two frames of the lower frame corresponding to the two sides of the window sash frame are symmetrically provided with brackets.
The telescopic support rod is composed of a guide sleeve and a plate-shaped support rod that is slidably combined with the guide sleeve.
The opposite surfaces of the guide sleeves of the two telescopic support rods are symmetrically provided with grooves,
The plate-like support rod in the slot is provided with a threaded locking knob at its end.
The screw top of the screwed locking knob is engaged with the guide sleeve,
One end of the guide sleeve of the telescopic support rod is axially connected to the bracket of the lower frame, and one end of the plate-shaped support rod is axially connected to the support plate of the window sash frame.
The utility model has the outstanding advantages of compact structure, space saving and simple operation.
Aluminum Frame Glazed Windows
Classified according to windows opening way:
Swing(Casement ) window,Awing (Hopper)window,Sliding window,Folding window,Fixed window,Single or Double Hung window,Tilt&Turn window,Sash window, Shutter(Louver) window,Pivot window
The the skylight windows general opening way :
1) Fixed,
2) Mid-suspension
3) Top-suspension
Recommended household skylight windows size :
780mm*980mm,
780mm*1180mm
| Item Name | Aluminum Profile Frame Double Toughened Glass 6MM+12A+6MM Windows |
| Size | Customized |
| Profiles | 1. 1.4-2.0mm thickness aluminum profiles |
| 2. Aluminium alloy profiles frames | |
| 3. Status: T5 T6 or other special status | |
| Glass | 1. Double toughened glazing:5+12A+5,6+12A+6... |
| 2. Single toughened glazing:6,8,10,12... | |
| 3. Laminated glazing:6.38,10.76,10.38... | |
| 4. Low-e glazing, frosted/obscure glazing, grey/blue/green tinted glazing... | |
| Hardware | Chinese top hardware or customized |
| Mesh | 1. Stainless steel security mesh |
| 2. Aluminium security mesh | |
| 3. Burglar screen | |
| 4. Mosquito screen | |
| Finish | 1. Powder coating |
| 2. Anodized | |
| 3. Electrophoresis | |
| 4. Wood grain | |
| Types | Swing, fixed, Sliding , Awning, Bi fold... |
| Lift and sliding door, Pivot door, Escape door | |
| Sensor door, Glass louvre, Aluminum louvre | |
| Sunroom windows and doors | |
| Color | Gray, Black, Silver, Wood Grain, others customized color |
| MOQ | 1 set |
Test Data reference:
Protect packing
