Product Details:

Place of Origin: China
Brand Name: FESEC
Certification: EN 1090-2-2018; ISO3834
Model Number: W0001

Payment & Shipping Terms:

Minimum Order Quantity: 10SQM
Packaging Details: Wooden fixed packaging,and Standard seaworthy packing of container
Delivery Time: 20-50 work day
Payment Terms: T/T, L/C
Supply Ability: 200,000SQM/month
Get Best Price Contact Now

Detail Information

Item Name: Soundproof Sliding UPVC Glass Windows Function: Security, Decoration
Material: Aluminum Frame+ Glass Surface Treatment: Powder Coating/PVDF
Glass Type: Double Tempered Glass Open Style: Swing
Hardware: China Top Hardware Size: Customized As Order
Color: Customized As Order
High Light:

Double Glazed UPVC Glass Windows

,

Soundproof Sliding UPVC Glass Windows

,

Anti Theft UPVC Glass Windows

Product Description

Product Description:

The UPVC profile is made of polyvinyl chloride (PVC) and resin as the main raw materials, plus a certain proportion of stabilizers, colorants, fillers, ultraviolet absorbers, etc., which are formed by extrusion.

Plastic steel profile is abbreviated as plastic steel, and its main chemical composition is PVC, so it is also called PVC profile. It is a new type of building material that is widely used. Because of its physical properties such as rigidity, elasticity, corrosion resistance, and excellent aging resistance, it is usually used as a good substitute for copper, zinc, aluminum and other non-ferrous metals.





How to use the product:

The plastic-steel window is opened by sliding left and right. It has the advantages of not occupying indoor space, beautiful appearance, economical price, and good airtightness. It is convenient to open the window for ventilation, have a transparent view, and easy to clean.
Use accessories, lightly push, open flexibly. With large pieces of glass, it not only increases indoor lighting, but also improves the overall appearance of the building



Description:

1. Profile wall thickness: 2.2-2.5mm thick, the usual color is white; other colors can be used, co-extrusion and laminating; (subject to the color card provided by our company)

2. The profile cavity is equipped with steel lining: 1.2mm thick;

3. Glass: 5mm single-layer tempered white glass; (Can be equipped with hollow or laminated glass)

4. Glass thickness: single glass: 5mm, 6mm, 8mm, 10mm;

Hollow: 5+6A+5, 5+9A+5, 5+12A+5;

Laminated: 5+0.76+5, 5+1.14+5;

5. Accessories: Crescent lock (white or black);

6. Screens: (can be equipped with push-pull and reel screens);

Gauze: glass fiber yarn (strong flame retardancy);

7. Accessories: EPDM leather strips, Lijialong wool tops, stainless steel screws, silent pulleys with bearings, anti-theft blocks,

Windproof block, anti-collision block, bumper, drainage hole cover (white or black);

 Daily maintenance, maintenance and cleaning:

1. After the doors and windows are installed, the protective film on the surface of the profile should be removed in time and scrubbed clean; otherwise, a large amount of the protective film adhesive will remain on the profile after high temperature exposure, resulting in unclean cleaning;
2. When the sliding window is in use, the outer frame track should be cleaned frequently to keep it clean, so that there are no hard particles on the track surface and groove.
3. When the sliding window is opened, the force point should be in the middle or lower position of the window sash. Do not use excessive force when opening and closing, so as not to reduce the service life of the window sash and accessories.
4. The gauze fan can remove the adhesive strip that fixes the gauze by itself, take off the gauze, and clean it with water-soluble detergent.
5. When the screen fan of the sliding window is in use, please pay attention to overlap with the vertical frame of the inner rail sliding fan to maintain a good airtightness.

Double Glazed Soundproof Sliding UPVC Glass Windows Heat Insulation Anti Theft 0





Material Selection:

Aluminum Frame:50 series, 55 series, 60 series,70 series ,80 series ,85 series, 90 series,100series and so on.

Single Glass:5mm/6mm/8mm/10mm/12mm...

Double Glass:5+6A+5 /5+9A+5 /5+12A+5/...

Frosted Glass:5mm/6mm/8mm/10mm/12mm...

Reflective Glass::5+6A+5 /5+9A+5 /5+12A+5/...

Low-E Glass :5mm+12A+5mm

Color: customized



Double Glazed Soundproof Sliding UPVC Glass Windows Heat Insulation Anti Theft 1

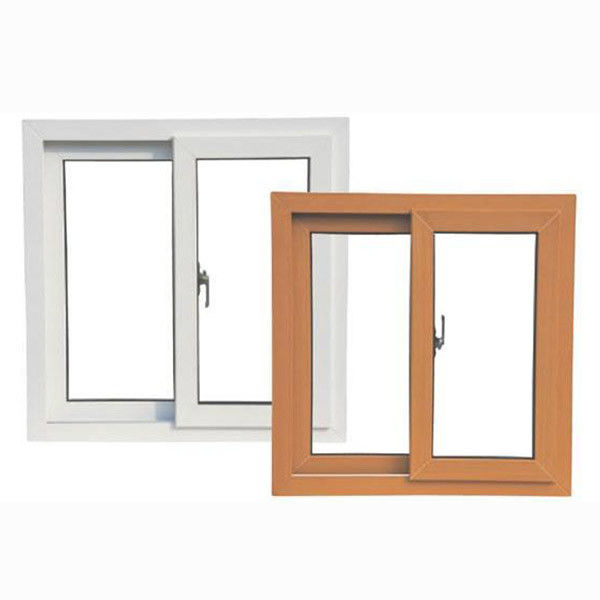

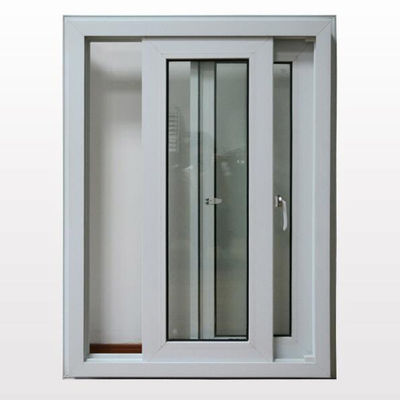

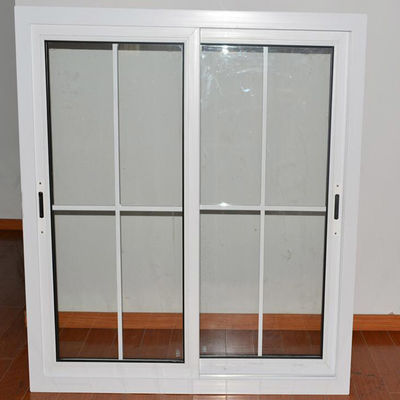

Various series model window display:





Double Glazed Soundproof Sliding UPVC Glass Windows Heat Insulation Anti Theft 2

Double Glazed Soundproof Sliding UPVC Glass Windows Heat Insulation Anti Theft 3

Double Glazed Soundproof Sliding UPVC Glass Windows Heat Insulation Anti Theft 4























Item Name Aluminum Profile Frame Double Toughened Glass 6MM+12A+6MM Windows
Size Customized
Profiles 1.1.4-2.0mm thickness aluminum profiles
2.Aluminium alloy profiles frames
3.Status: T5 T6 or other special status
Glass 1.Double toughened glazing:5+12A+5,6+12A+6...
2.Single toughened glazing:6,8,10,12...
3.Laminated glazing:6.38,10.76,10.38...
4.Low-e glazing, frosted/obscure glazing, grey/blue/green tinted glazing...
Hardware Chinese top hardware or customized
Mesh 1.Stainless steel security mesh
2.Aluminium security mesh
3.Burglar screen
4.Mosquito screen
Finish 1.Powder coating
2.Anodized
3.Electrophoresis
4.Wood grain
Types Swing, fixed, Sliding , Awning, Bi fold...
Lift and sliding door, Pivot door, Escape door
Sensor door, Glass louvre, Aluminum louvre
Sunroom windows and doors
Color Gray, Black, Silver, Wood Grain, others customized color
MOQ 1 set







Test Data reference:





Double Glazed Soundproof Sliding UPVC Glass Windows Heat Insulation Anti Theft 5























Protect packing

Double Glazed Soundproof Sliding UPVC Glass Windows Heat Insulation Anti Theft 6
