Product Details:

Place of Origin: Zhejiang, China
Brand Name: FASECbuildings
Certification: EN 1090-2-2018; ISO3834
Model Number: OWN

Payment & Shipping Terms:

Minimum Order Quantity: 200SQM
Price: USD8~USD15 per Square Meter
Packaging Details: Pallets Packaing or Packing in Bulk (Seaworthy packings into container or bulk vessel)
Delivery Time: Based on client's requirement
Payment Terms: L/C, T/T
Supply Ability: 200,000 Square Meter per Month
Get Best Price Contact Now

Detail Information

Panel Thickness: 25-300mm MgO Thick: 3-20mm Or Customized
Steel Color: White,Gray, Etc Core Material: EPS,XPS,PU,PUR,PIR,FIBER GLASS,CEMENT,etc
Application: Ceiling,Wall,Floor,Partitions,etc Type: Sandwich Panel
High Light:

25mm Sandwich Wall Panels

,

300mm Sandwich Wall Panels

,

Magnesium Oxide Fire Resistant Sandwich Panels

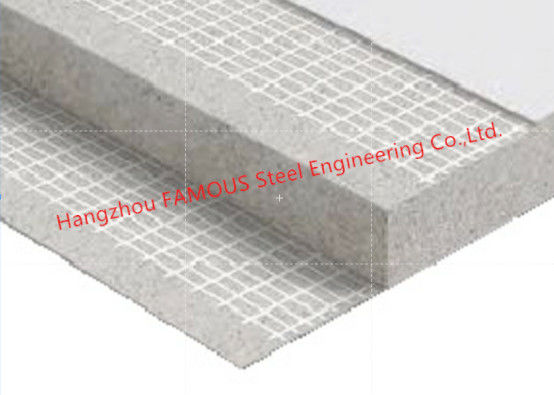

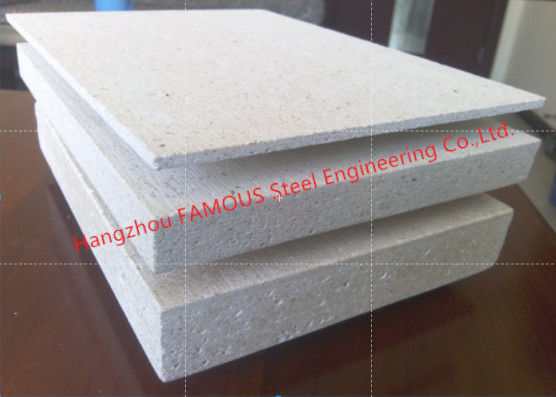

Product Description

Waterproof Mgo Board Fire Resistence Cement Fiber Glass Reinforced Magnesium Oxide Panel





Products Introduction:

Cement glass fiber reinforced concrete panels is a non-asbestos fiber-cement product composed of Portland cement, cellulose fiber and refined sand.The board is then cured by an autoclaving process whereby the ingredients are reacted together under the effects of super-heated steam and high pressure. The synthetic cement silicate binder provides exceptional dimensional stability and an unrivalled resistance to movement due to effects of moisture or heat.

The board will not rot or support fungal growth and is unaffected by sunlight or steam.

The board does not contain any soluble ingredients or free alkali which could be dissolved by moisture or condensation and causing unsightly marks. If exposed to moisture, the board will completely recover on drying out, with no permanent loss of strength.The board will not degrade with time and within normal applications, the life of the product is limited only by the durability of the supporting structure and materials used in fastening.

25-300mm Sandwich Wall Panels Cement Fiber Glass Reinforced , Magnesium Oxide Fire Resistant Sandwich Panels 0















Specifications:

Normal Size: 1220mm×2440mm
Max Width: 1220mm
Max Length: 3000mm
Thickness Range: 3-20mm
Availiable color: White,grey,green,red and pink
Fireproof A grade (GB8624)
Density 0.96-1.03g/cm3 (GB/T7019-1997)
Intensity of bending resistance when dry 18Mpa (GB/T7019-1997)
Intensity of bending resistance when moisture-saturated condition 22Mpa (GB/T7019-1997)

The rate of deformation when pick up the moisture 0.26% (GA160-1997)
The shrinking rate when heated 1.0% (GA160-1997)
Water permeability There is no drop of water to emerge in the back (CNS 13778)
Impact resistance No carck,strip and run through (CNS 13778)
Thermal resistance 1.14m2K/W (GB/T13475-92)
Sound insulation >44db (GBJ121-88)
Security 100% no asbestos









Features:



-Fire resistant (Class A1) building material;

-Lighter, more flexible and stable than traditional sheeting systems;

-Time and material saving - dramatically reducing construction costs;

-Environmentally friendly, applying a sustainable production process with reduced CO2 footprint;

-Ideal for time, safety and health sensitive construction applications;

25-300mm Sandwich Wall Panels Cement Fiber Glass Reinforced , Magnesium Oxide Fire Resistant Sandwich Panels 1

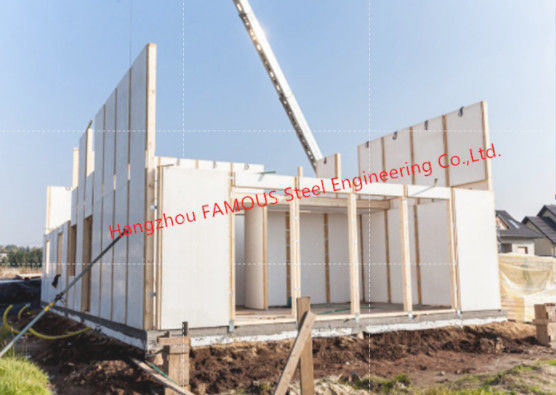

Installation Diagram



25-300mm Sandwich Wall Panels Cement Fiber Glass Reinforced , Magnesium Oxide Fire Resistant Sandwich Panels 2





25-300mm Sandwich Wall Panels Cement Fiber Glass Reinforced , Magnesium Oxide Fire Resistant Sandwich Panels 3

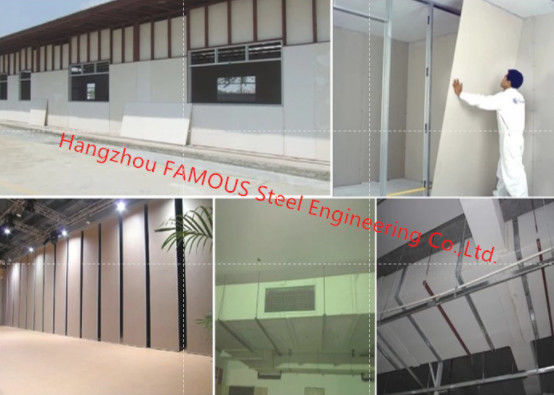

Application of Fiber Cement Decorative Wall Board



1. Complex exterior wall system

2. Industrial factory exterior wall system

3. Outer heat preservation of exterior wall and construction energy saving system

4. Exterior wall decoration and the existing exterior wall rebuild

5. Underground wall decoration system

6. Road bridge sound barrier system









Advantages:

25-300mm Sandwich Wall Panels Cement Fiber Glass Reinforced , Magnesium Oxide Fire Resistant Sandwich Panels 4

25-300mm Sandwich Wall Panels Cement Fiber Glass Reinforced , Magnesium Oxide Fire Resistant Sandwich Panels 5
