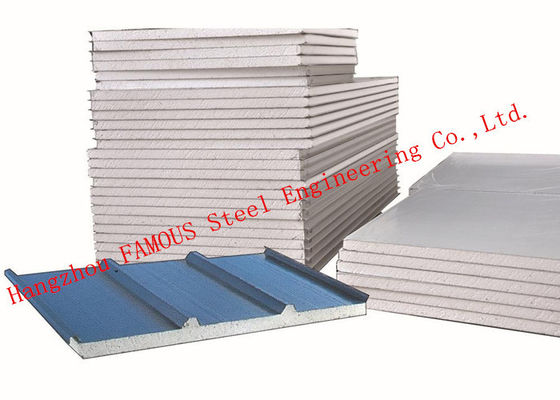

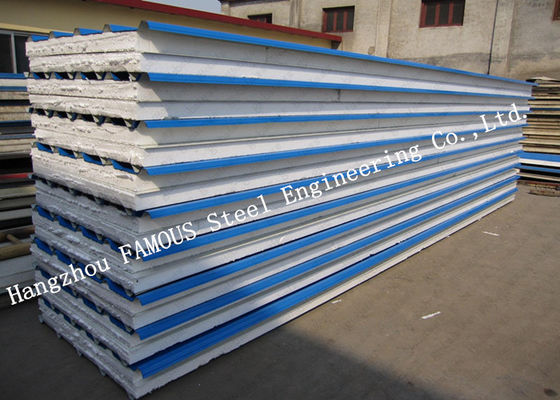

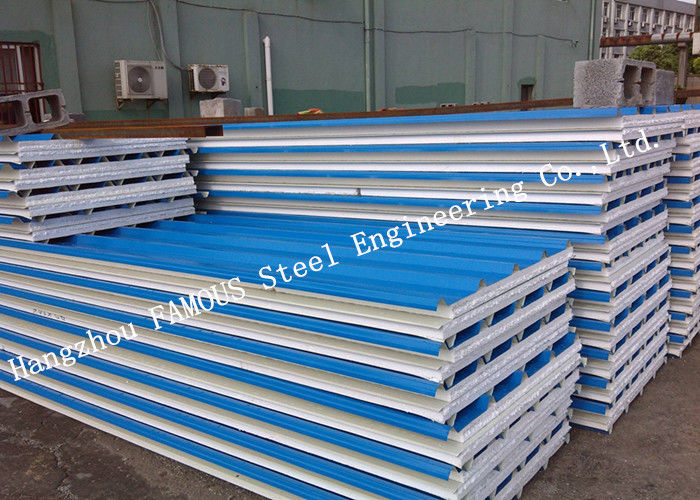

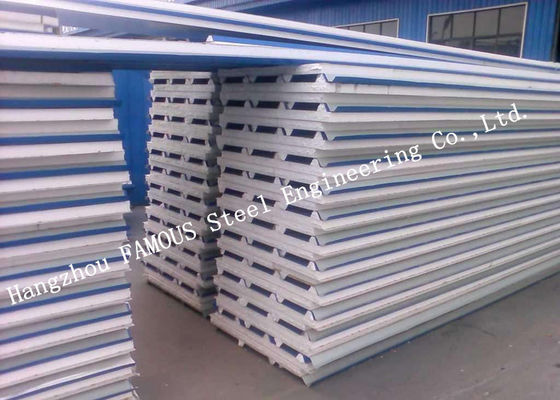

Corrugated Waterproof 50mm EPS Sandwich Wall Panels
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | FASECbuildings |
| Certification: | EN 1090-2-2018; ISO3834 |
| Model Number: | OWN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 square meters |
|---|---|
| Price: | USD5-15 Per square meter |
| Packaging Details: | Pallets Packaing or Packing in Bulk (Seaworthy packings into container or bulk vessel) |
| Delivery Time: | Based on client's requirement |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200,000 square meters per month |
|
Detail Information |
|||
| Features: | Fire,Water,Sound,Weather Proof ,etc. | Thickness: | 50mm,75mm,100mm |
|---|---|---|---|
| Core Material: | EPS Sandwich Panel | Effective Width: | 950mm,1150mm |
| Color: | Customized | Density: | 12kg/m3 |
| Application: | Warehouse, Workshop, Garage, Factory And So On | ||
| High Light: | Waterproof EPS Sandwich Wall Panels,50mm EPS Sandwich Wall Panels,Corrugated sandwich panel eps 50mm |
||
Product Description
Insulated Waterproof Corrugated EPS Sandwich Panels Heat Resistant Wall Panel
EPS sandwich panel production process adopts the colored steel sheet as surface board,and the core material is the self-extinguishing closed cell polystyrene foam,It is a kind of high strength composted building material, and it was formed in the automated continuous-molding machine, by combining the pressed colored steel sheet with the High Strength Adhesives.It has the characteristics of complete insulation and fire-proof, fast construction , durability, and beautiful appearance, etc.
Expanded polystyrene (EPS) core sandwich panels
Specifications
| Thickness of color steel sheets | 0.3-0.8mm |
| Thickness of EPS/PU core | 40-200mm |
| Effective width |
Wall panel: 950mm 1150mm Roof panel: 950mm 1050mm |
| Length | As client’s requirements |
| Materials | EPS sandwich panel, Color steel sheets |
| Structure |
Upper and lower layer: Color steel sheet Middle: polystyrene foam board or polyurethane foam board |
| Color | All colors (standard international color) or customers samples’ color |
| The polystyrene density | 8-25kg/m3 |
| Sample | Available freely |
| Character | Light in weight, heat insulation, water resistant, green and environmental |
Features of EPS Sandwich Panel
1. EPS sandwich panel has the following characteristics: light dead weight, high mechanical strength, excellent shearing resistant performance, strong corrosion resistance, high durability, and weather fastness, etc.
2. The sandwich panel has excellent insulating performance: heat insulation, sound insulation, waterproof performance, etc.
3. It is easy to install and can be used many times over.
4. Nowadays, the EPS sandwich panel is widely used for cleaning workshops, industrial factory buildings, office buildings, stadiums, villas, and public buildings, etc.
Advantages:
1. Broad Availability ,wide range of material for your choice
2. Outstanding formality with beautiful appearance with rich color
3. Superior Durability
4. Excellent Cost Effectiveness
5. Light weight , easy to transportation ,easy to install
6. Fireproof , heat preservation ,sound isolation
Applications:
- Widely used in construction, heat preservation, packaging, frozen, daily necessities, industrial casting, etc.
- Also be used to display the assembly places, commodity cabinet, signs and toys manufacture.
- Mainly applies heat preservation
- Carport, Hotel, House, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant
DETAILS OF THE PANEL JOINT
SECTIONAL VIEW OF THE PANELS
TYPES OF SURFACE SHAPE
Production Process
APPLICATION & INSTALL ACCESSORIES
