Product Details:

Place of Origin: Zhejiang, China
Brand Name: Fasecbuildings
Certification: EN 1090-2-2018; ISO3834
Model Number: Glass wall

Payment & Shipping Terms:

Minimum Order Quantity: 300 sqm
Packaging Details: Seaworthy packing in container or bulk vessel
Delivery Time: Based on client's needs like one month
Payment Terms: L/C,T/T, D/A, D/P, Western Union
Supply Ability: 600,000 sqm per Year
Get Best Price Contact Now

Detail Information

Specification: Customized Exterior Glass Wall Material: Aluminum +Toughened Glass
Color: Customized As Order Installation: Easy
Size: According To Client's Need Application: Commercial Building
Highlight:

Horizontal Bifold Aluminum Glass Wall

,

Bifold Toughened Aluminum Glass Wall

,

Hydraulic Bifold Aluminum Glass Wall

Product Description

Compact Hydraulic Power Dual Panel Horizontal Bi-folded Toughened Glass Commercial Door



The upper folding door is composed of an upper door panel, a lower door panel, a track, a lifting system, a sealing system, and a safety device; the door opener is installed on the lower door panel, and the drum is rotated by a motor, so that the length of the lifting belt or the wire rope is changed, thereby achieving the opening and shut down.



Material

1. The skeleton is steel structure, usually Q235 is used. The interior can be filled with thermal insulation material, which has good heat insulation and sound insulation;

2. For exterior decoration, color steel plate,   aluminum plate, stainless steel plate, aluminum-plastic plate, and polyurethane profiled plate can be selected according to user needs; you can choose the lighting style;

3. Imported fiber braided lifting straps;

4. Electrical components use high-quality and reliable brand devices.

Feature

1. The upper folding door is calculated according to the design, and it is synchronously lifted by the rollers of N lifting belts on the same axis;

2. Stable operation, low noise, sound and light prompts when opening and closing the door;

3. The door seal is realized in all directions, and the door is tight, heat-insulating and noise-reducing.

4. High safety system; safety limit system; infrared system (optional);

5, can realize the electric switch gate;

Techniques Parameters,

1, Opening Speed: 6-9 m / min

2, the maximum size: width according to user requirements;

3. Working voltage: 380V / 50Hz

4.Installed with anti-falling parts

5. Wind pressure resistance: ≥700pa

6. Motor and reducer: domestic and imported professional motors can be selected

7.Electric control box protection class IP55

8. Sound insulation performance:> 40dB

9. Bottom loading limit mechanism (optional)

Application:

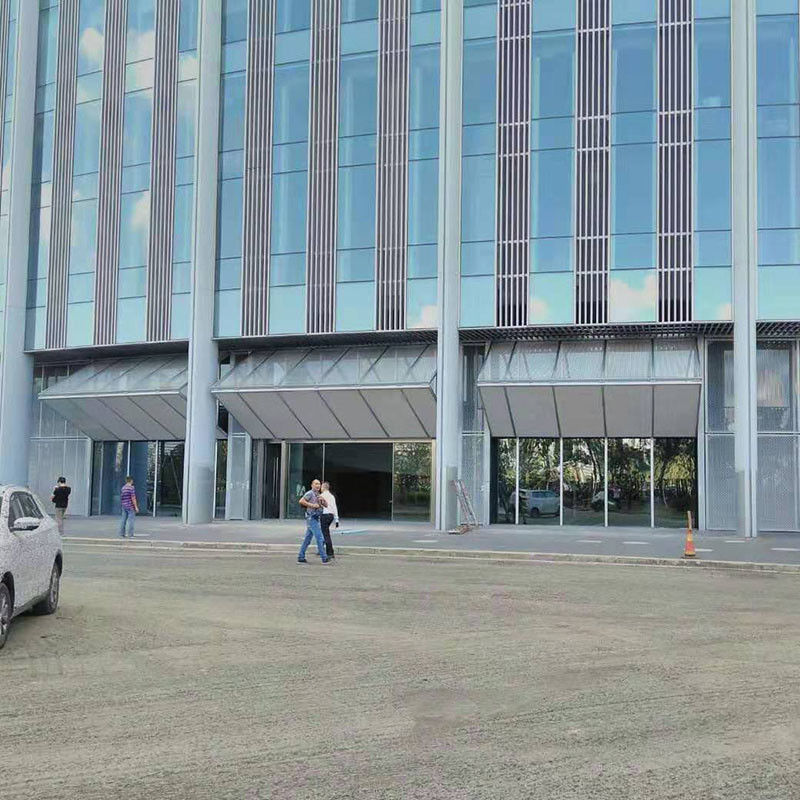

Suitable for large-span doorways, especially for buildings with no space on the upper part and sides of the doorways. It can be widely used in small hangars, garages, hotels, and other large-span opening doors.



360 Integrated Design - No Exposed Wires, Springs, Straps, or Motors/Belts around the Door Frame.



Hydraulic Bifold Toughened Aluminum Glass Wall Horizontal Lifting 0

Hydraulic Bifold Toughened Aluminum Glass Wall Horizontal Lifting 1

Hydraulic Bifold Toughened Aluminum Glass Wall Horizontal Lifting 2

Performance Parameter
Performance EU-STD GB/T7106 GB/T8484
Air Tightness Class4 Class8
Water Tightness E1500 Class6
Wind Resistance C5 Class9
Insulating Properties K 1.45W/·K Class8
Sound Insulation Rw=dB39
Glazing 5+12A+5+12A+5




Hydraulic Bifold Toughened Aluminum Glass Wall Horizontal Lifting 3








Our  Certification:


Hydraulic Bifold Toughened Aluminum Glass Wall Horizontal Lifting 4

Performance Parameter
Performance EU-STD GB/T7106 GB/T8484
Air Tightness Class4 Class8
Water Tightness E1500 Class6
Wind Resistance C5 Class9
Insulating Properties K 1.45W/·K Class8
Sound Insulation Rw=dB39
Glazing 5+12A+5+12A+5
