Solar Photovoltaic Glass Facades PV Glass Photovoltaic Curtain Wall
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | FASEC |
| Certification: | ISO9001:2008;CE |
| Model Number: | Glass curtain wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300 sqm |
|---|---|
| Price: | USD100~USD500 per Square Meter |
| Packaging Details: | Pallets Packaing or Packing in Bulk (Seaworthy packings into container or bulk vessel ) |
| Delivery Time: | 30~45 workdays |
| Payment Terms: | L/C,T/T, Western Union |
| Supply Ability: | 600,000 Square Meter per Year |
|
Detail Information |
|||
| Type: | Curtain Walls | Product Name: | Aluminum Frame Glass Curtain Wall |
|---|---|---|---|
| Material: | Glass, Aluminum, 6060, 6005, 6106 | Application: | Commercial / Residential Building Exterior |
| Function: | Heat-insulation,Waterproof, Fireproof, Soundproof | Glass Thickness: | 6+9a+6, 6mm+0.76pvb+6mm, Customized |
| Glass Color: | Blue, TINT GLASS OR REFLECTIVE, Grey, Green, Grey/Green/Blue/Tea/or The Others Or Clear | Glass Shape: | Rectangle, Square, Triangle, Honeycomb,hexagonal,customized |
| Frame: | 6063-T5 Grade Of Aluminum Alloy, Invisible Frame, STANDARD ALUMINUM PROFILE | Hardware: | China Top Brand, CHINA BRAND OR GERMAN, High Quality Made In China, Chinese Brand Or International Brand For 10 Years Warraty, ALUK Brand |
| Surface Treatment: | Anodized, Powder Coating,Electrophoresis | Certification: | ISO9001, OHSAS18001, ISO 9001, CE |
| Warranty: | GB5237-2008 Equal To EN12020-1.2(2001) 5 - 10 Years | ||
| High Light: | Solar Photovoltaic Glass Facades,PV Glass Photovoltaic Curtain Wall,6106 Photovoltaic Curtain Wall |
||
Product Description

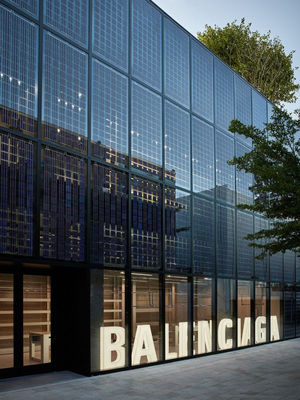

Solar glass photovoltaic glass façades PV Glass Supply Photovoltaic Curtain Wall
A curtain wall is a non-structural building envelope that is intended to support only its own weight and withstand the effects of environmental forces such as wind. It is not intended to support the weight of a roof or floor. Instead, gravity loads and wind resistance transfer from the surface to the building’s floor line. Since it is non-structural, it can be made of lightweight materials - glass and aluminum profiles to help reduce construction costs. We offer a variety of glass products that allows architects and designers to control every aspect of aesthetics and performance, including thermal and solar control, sound and security as well as colour, light and glare.
There are two main types of curtain walling construction: “stick” and “unitised”. In stick construction, the curtain wall frame is constructed mainly on site with mullions and transoms supporting glass, spandrel panels, metal panels and brise-soleils, connected piece by piece. Each mullion is usually supported by the floor or perimeter beams.In unitised construction, on the other hand, the curtain wall is composed of large units that are assembled in the factory, shipped to the site and erected on the building. Aluminium profiles are used to form the frame, which is normally one-storey high. Aluminium is typically used for facade frames because of its strength and stability. It is also highly durable, moisture and corrosion-resistant and 100% recyclable. Opening vents, glazing and infill panels are built into units before being transported to site. As with stick construction, each unit is usually supported by the floor or perimeter beams.
Glass curtain walls are not exclusive to commercial applications. They also provide viable glazing solutions for residences as well.
We are ONE-STOP-SHOP for building envelopes, outer building skin and premium FACADES. In addition to high performing glasses, aluminum frames and other accessories, our professionals are capable of offering tailored solutions for those glass facade projects that require a specific function or architectural design.
| Product Spec | ||||||||||||
| Product name | Glass curtain walls | |||||||||||
| Warranty | Minimum 5 years | |||||||||||
| Aftersale Service | Installation Guide and on-line Technical support | |||||||||||
| Project Solution Capability | Graphic design, 3D model design, total solution for individual projects, cross categories consolidation etc. | |||||||||||
| Application | Commercial/Residential buildings | |||||||||||
| Glass options | 1.Single glass:4, 6, 8, 10, 12mm (Tempered Glass) | |||||||||||
| 2.Double glass:5mm+9/12/27A+5mm (Tempered Glass) | ||||||||||||
| 3.Laminated glass:5+0.38/0.76/1.52PVB+5 (Tempered Glass) | ||||||||||||
| 4.Insulated glass with argon gas (Tempered Glass) | ||||||||||||
| 5.Triple glass (Tempered Glass) | ||||||||||||
| 6.Low-e glass (Tempered Glass) | ||||||||||||
| 7.Tinted/Reflected/Frosted Glass (Tempered Glass) | ||||||||||||
| Glass color options | Matt black; white; ultra silver; clear anodized; nature clean aluminium ; Customized | |||||||||||
| Functions | Energy saving heat & sound insulation in different levels, waterproof | |||||||||||
| Design and dimension | Tailor made | |||||||||||
| Production standard | Following the shop drawings approved by customer; in compliance with U.S.,EU, AU. standards or other standards specified and agreed. | |||||||||||
If you have interest, please contact us and tell us about your project by email or phone. We are happy to talk about estimates and our capabilities for Residential, Commercial and Custom Glass work.
