Anodized Ceramic Fritted Aluminum Glass Wall 6mm Thickness
|Place of Origin:
|Glass curtain wall
Payment & Shipping Terms:
|Minimum Order Quantity:
|Pallets Packaing or Packing in Bulk (Seaworthy packings into container or bulk vessel )
|L/C,T/T, Western Union
|600,000 Square Meter per Year
|Glass Curtain Wall
|Glass, Aluminum, 6060, 6005, 6106
|Commercial / Residential Building Exterior
|Heat-insulation,Waterproof, Fireproof, Soundproof
|6+9a+6, 6mm+0.76pvb+6mm, Customized
|Clear/Blue/Grey/Bronze/Tea/Green/ TINT GLASS OR REFLECTIVE Or Others
|Rectangle, Square, Triangle, Honeycomb,hexagonal,customized
|6063-T5 Grade Of Aluminum Alloy, Invisible Frame, STANDARD ALUMINUM PROFILE
|China Top Brand, CHINA BRAND OR GERMAN, High Quality Made In China, Chinese Brand Or International Brand For 10 Years Warraty, ALUK Brand
|Anodized, Powder Coating,Electrophoresis
|ISO9001, OHSAS18001, ISO 9001, CE
|GB5237-2008 Equal To EN12020-1.2(2001) 5 - 10 Years
Ceramic Fritted Aluminum Glass Wall,
6mm Thickness Aluminum Glass Wall,
Glazing Anodized Aluminum Glass Wall
Customized Ceramic Fritted Glass for Facades
Silk-screened glass decorative glass for curtain walls
A curtain wall is a non-structural building envelope that is intended to support only its own weight and withstand the effects of environmental forces such as wind. It is not intended to support the weight of a roof or floor. Instead, gravity loads and wind resistance transfer from the surface to the building’s floor line. Since it is non-structural, it can be made of lightweight materials - glass and aluminum profiles to help reduce construction costs. We offer a variety of glass products that allows architects and designers to control every aspect of aesthetics and performance, including thermal and solar control, sound and security as well as colour, light and glare.
There are two main types of curtain walling construction: “stick” and “unitised”. In stick construction, the curtain wall frame is constructed mainly on site with mullions and transoms supporting glass, spandrel panels, metal panels and brise-soleils, connected piece by piece. Each mullion is usually supported by the floor or perimeter beams.In unitised construction, on the other hand, the curtain wall is composed of large units that are assembled in the factory, shipped to the site and erected on the building. Aluminium profiles are used to form the frame, which is normally one-storey high. Aluminium is typically used for facade frames because of its strength and stability. It is also highly durable, moisture and corrosion-resistant and 100% recyclable. Opening vents, glazing and infill panels are built into units before being transported to site. As with stick construction, each unit is usually supported by the floor or perimeter beams.
Glass curtain walls are not exclusive to commercial applications. They also provide viable glazing solutions for residences as well.
FAMOUS is ONE-STOP-SHOP for building envelopes, outer building skin and premium FACADES. In addition to high performing glasses, aluminum frames and other accessories, Famous' professionals are ready to offer tailored solutions for those glass facade projects that require a specific function or architectural design.

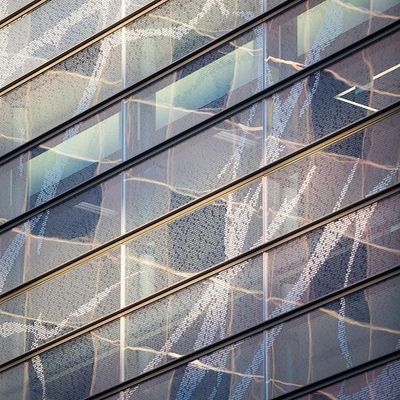

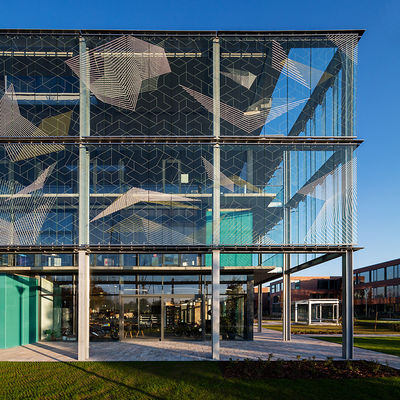

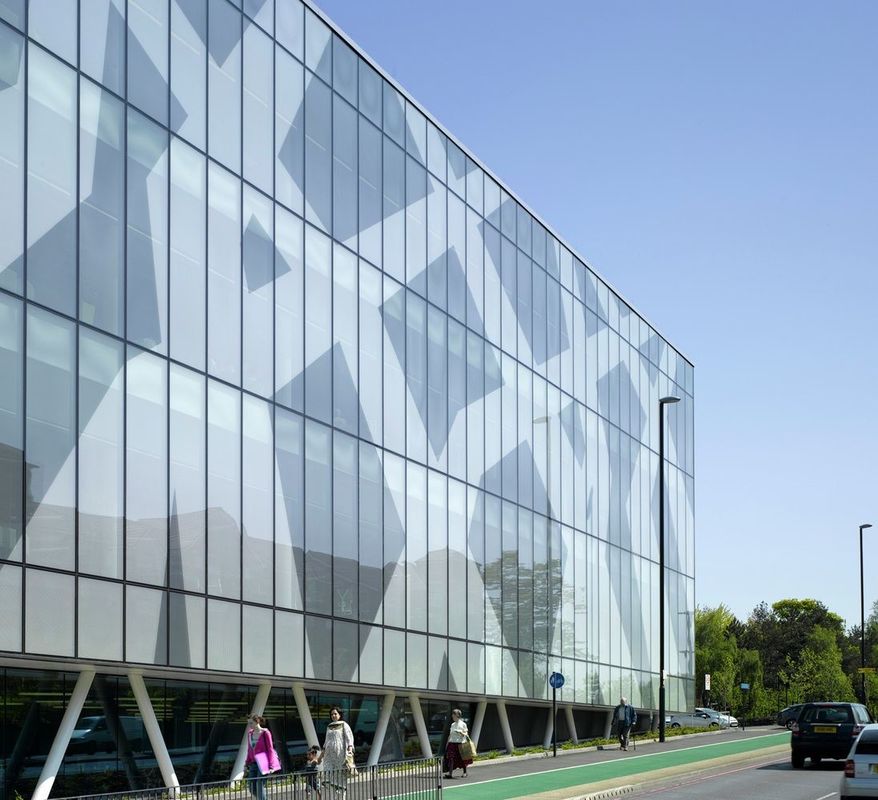

Ceramic Fritted Glass for Curtain Wall
Ceramic Fritting is a process by which glass enamel is fused on the glass surface. Before the glass is heat strengthened or tempered, Ceramic frit is applied to the glass through a fine mesh screen with glass enamel. After tempering or heat strengthening, the glass enamel becomes a permanent coating which cannot be further damaged or removed by cleaning, scrubbing, etc. Silk-screening is done by printing a layer of ceramic ink on the glass surface through a screen mesh. When silk-screened glass is combined with clear, tinted, Low-E, or reflective glass, it can control light transmittance and reduce solar heat gain while enhancing aesthetic and performance characteristics, giving strength, safety, privacy, decoration and solar control in one product.
Though normally suitable for IGUs, Ceramic frit glass can be used for both exterior and interior applications such as curtain walls, point fixed or bolted glazing systems, shower installations, glass doors and partitions. When used on building exteriors, the painted surface must be protected from direct contact with the environment.
We offer a wide range of colours and designs that fully or partially cover the surface of the glass for facade. Accept wholesale or OEM business. If you have interest, please contact us and tell us about your project by email or phone. We are happy to talk about estimates and our capabilities for Residential, Commercial and Custom Glass work.
FASEC(Hangzhou)Window Wall Co.,Ltd.
Address: No.7 Yuyang Road,Lushan Industrial Park,Fuyang District,Hangzhou City,China
|Glass curtain walls
|Minimum 5 years
|Installation Guide and on-line Technical support
|Project Solution Capability
|Graphic design, 3D model design, total solution for individual projects, cross categories consolidation etc.
|1.Single glass:4, 6, 8, 10, 12mm (Tempered Glass)
|2.Double glass:5mm+9/12/27A+5mm (Tempered Glass)
|3.Laminated glass:5+0.38/0.76/1.52PVB+5 (Tempered Glass)
|4.Insulated glass with argon gas (Tempered Glass)
|5.Triple glass (Tempered Glass)
|6.Low-e glass (Tempered Glass)
|7.Tinted/Reflected/Frosted Glass (Tempered Glass)
|Glass color options
|Clear, matt black; white; ultra silver; grey; bronze; blue, green, customized
|Energy saving heat & sound insulation in different levels, waterproof
|Design and dimension
|Following the shop drawings approved by customer; in compliance with U.S.,EU, AU. standards or other standards specified and agreed.
