0.8mm-1.2mm Composite Metal Floor Decking For Multi Storey Building ISO9001
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | FASECbuildings |
| Certification: | EN 1090-2-2018; ISO3834 |
| Model Number: | HZFS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000sqm |
|---|---|
| Price: | USD10-20/sqm |
| Packaging Details: | Seaworthy packing in container or bulk vessel |
| Delivery Time: | 1-4 weeks per production plan |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union |
| Supply Ability: | 50000sqm per month |
|
Detail Information |
|||
| Material: | Steel Floor Decking Sheet | Color: | Silver |
|---|---|---|---|
| Zinc: | 350g/m2 | Surface: | Galvanized |
| Width: | 970mm | Thickness: | 1-3mm |
| Application: | Floor Slab | ||
| High Light: | 1.2mm Composite Metal Floor Decking,0.8mm composite metal floor decking,ISO9001 composite steel floor deck |
||
Product Description
Composite Metal Floor Decking for Multi Storey Building
Composite floor deck is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure workshops, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, and the Olympics. Steel buildings such as stadiums and stadiums.
Adapting to the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time, and can use multiple floors to lay the profiled steel plate and layer the concrete flow of the concrete slab.
The metal floor decking formwork is made of galvanized steel sheet by roll forming, and its cross section is V-shaped, U-shaped, trapezoidal or similar. It is mainly used as a permanent template and can also be selected for other purposes. Products are widely used in power plants, power equipment companies, automobile exhibition halls, steel structure workshops, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, Olympic venues. Steel structures such as venues. Adapting to the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time, and can use multiple floors to lay the profiled steel plate and layer the concrete flow of the concrete slab.
Our Roof Decking range offers a variety of metal thickness (0.50 mm to 1.5mm) profile and finish to meet different requirements regarding span , insulation, water proofing, imposed load, thermal efficiency and any other considerations.
1. It can be used as a permanent structural support member for slab.
2. It will enable fast construction of building roofs and floors save up to 50% of construction time of the slab and roof. Once design as composite structural, will allow either to reduce or to eliminate the structural steel used in RCC slabs.
3. It combines exceptional spanning capabilities with reduced concrete usage to provide a cost-effective and attractive floor solution that's easy to install .
Specification:
| Specification and details of Composite Metal Floor Decking for Multi Storey Building | |
| Thickness | 0.8-1.2mm; max 1.5mm |
| Length | 0mm-11800mm |
| Width | 600mm-1025mm (depend on the model you chose) |
| Thickness Tolerance: | +/-0.04mm |
| Width Tolerance: | +/-5mm |
| Zinc Coating: | 60-275g/m2; |
| Certification | ISO9001 |
| Packing | Seaworthy packing |
Advantages:
Greater Durability
The FAMOUS steel base product has a Z350 zinc-coating mass. It was selected to provide superior corrosion protection in service, directly as a result of increased coating mass. FAMOUS steel is also available with a Z450 coating mass with a 15 year warranty. Comprehensive shear stud welding tests across a range of base thickness with both coating masses were undertaken to ensure consistent results can be achieved on site.
Unbeatable Strength
Steel and concrete composite slabs are lighter and stronger than most conventional slabs. The steel decking provides tensile reinforcement, combining with the compressive strength of the concrete for an all round stronger slab. Steel decking profiles are designed to prevent any longitudinal slip between the steel and concrete in the slab itself, and any transverse movement between the slab and supporting beams.
Application:
Power plant, power equipment company, car showroom, steel structure plant, cement warehouse airport terminal, railway station, stadium, concert hall, theater, supermarket, logistics center, exhibition hall, etc.

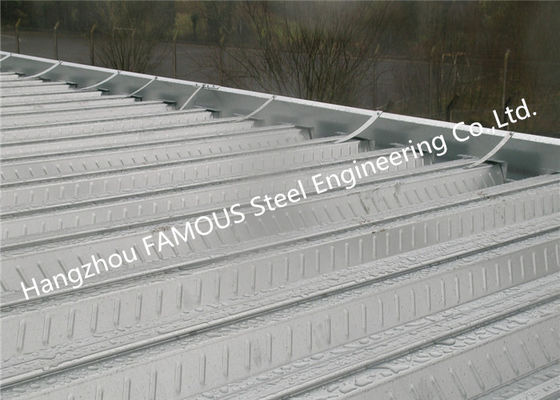

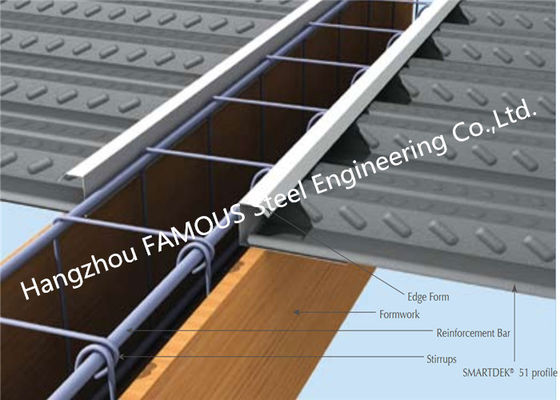

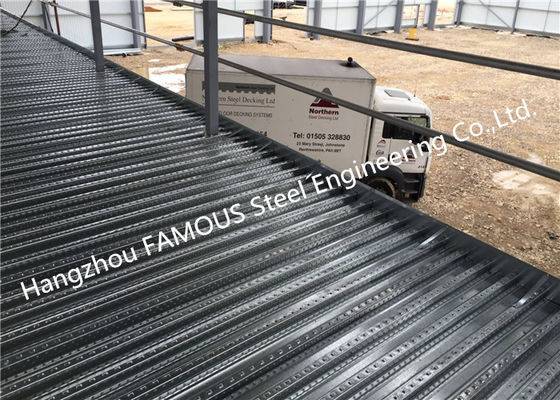

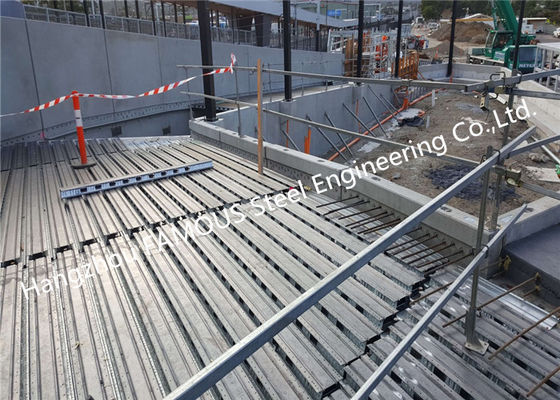

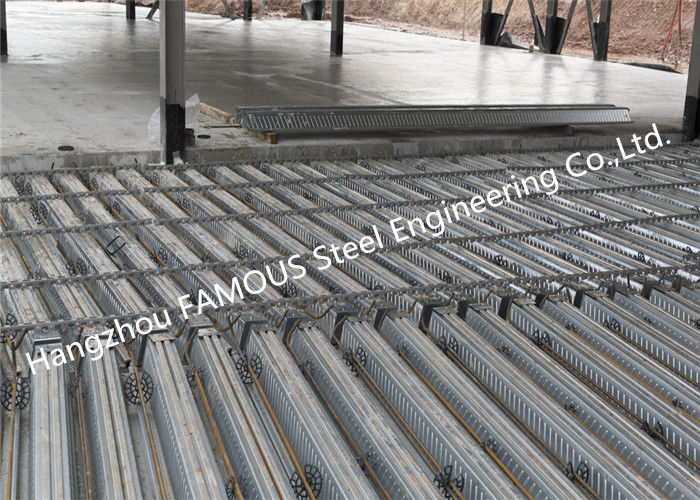

Meanwhile we can also different models of decking series. Please check bellow pictures. If you prefer any of them, please contact with me directly.
