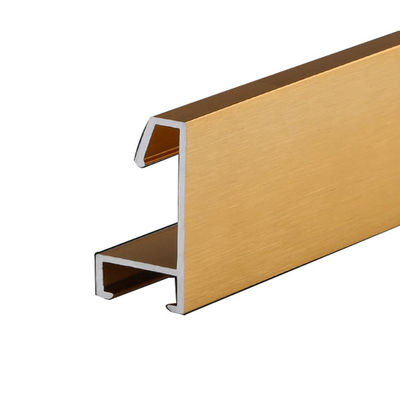

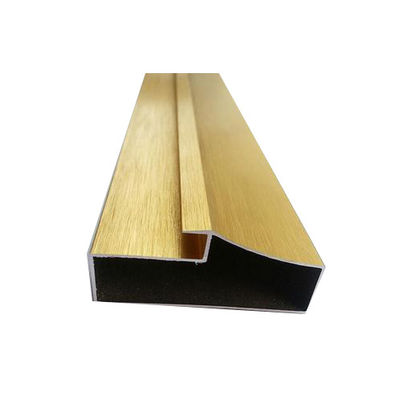

Tempered Glass T5 Aluminum Profile , Aluminum Window Frame Extrusion Profiles
Product Details:
Place of Origin: | China |
Brand Name: | FESEC |
Certification: | EN 1090-2-2018; ISO3834 |
Model Number: | AL-F |
Payment & Shipping Terms:
Minimum Order Quantity: | 2 Tons |
---|---|
Price: | USD-2000-5000 |
Packaging Details: | 1.. Wrap with shrink film exterior; 2. PE shrink film; 3. Packed according to customer reques. |
Delivery Time: | 15-30 work days |
Payment Terms: | L/C, T/T |
Supply Ability: | 5000 KG/ per Week |
Detail Information |
|||
Material: | 6000 Series Aluminum Alloy,like 6063,6061 | Deep Processing Ability: | CNC,Drilling,Bending,Welding,Precise Cutting,etc. |
---|---|---|---|
Application: | Windows&doors,kitchen,curtain Wall,glass Wall,LED Strip,etc | Color: | Silver, Black, Grey, Gold, Bronze, Champagne Etc |
Temper: | T4, T5, T6 | ||
High Light: | ISO3834 T5 Aluminum Profile,ISO3834 Tempered Glass Aluminum Profile,ISO3834 5.0mm aluminum window frame extrusion profiles |
Product Description
FASEC Building Material Co.,Ltd.is a construction enterprise focusing on production, sales, and construction services. In recent years, the company has been committed to the development and promotion of various building materials.

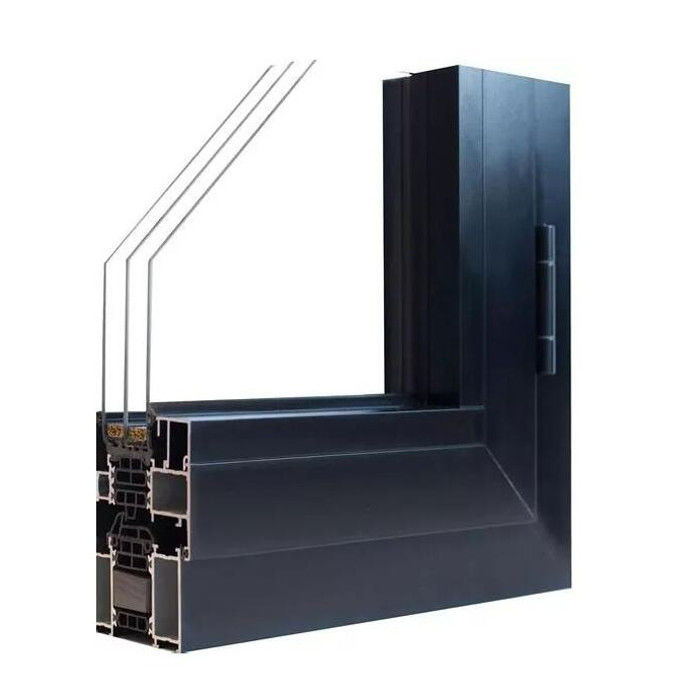

As a new building material with high-quality, high-strength, lightweight structure, aluminum Frame+tempered glass windows and doors has been widely used in the facade and interior decoration of buildings.
Aluminum Frame Glazed Doors and Windows ,Curtain wall are the outer structure of the building, which have the functions of sheltering wind and rain, sound insulation, heat insulation, day lighting, and ventilation.
Advantage:
1.Easy to install
2.Nice design with competitive price
3.Good sealing perfomance
4.Excellent gas & water tightness
5.Nice Sound & heat insulation
6.Environmental protection & energy conservation performances.
Excellent quality and Competitive price, OEM is available.
Available in an extensive range of stock or custom size.
Chemical Composition of Extrusion Aluminum Alloy Profiles | |||||||||||
Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti | Impurity | Al | |
Unit | Total | ||||||||||
6063 | 02-06 | 0.45-0.9 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 | <0.05 | <0.15 | Surplus |
6061 | 0.4-0.8 | 0.8-1.2 | <0.7 | 0.15-0.4 | <0.15 | <0.25 | 0.04-0.35 | <0.15 | <0.05 | <0.15 | Surplus |
6060 | 0.-0.6 | 0.35-0.6 | 0.1-0.3 | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.05 | <0.1 | <0.05 | <0.15 | Surplus |
6005 | 0.6-0.9 | 0.4-0.6 | 0.35 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.05 | <0.15 | Surplus |
Technical Data of Extrusion Aluminum Alloy Profiles | ||||||
Alloy | Temper | Thickness | Tensile | Yield | Vickers | Webster |
Strength | Strength | Hardness | Hardness | |||
6005 | T6 | ≤5 | ≥270MP | ≥225MP | ||
T6 | 5<e≤10 | ≥260MP | ≥215MP | |||
T6 | 10<e≤25 | ≥250MP | ≥200MP | |||
6060 | T6 | ≤3 | ≥190MP | ≥150MP | ||
T6 | 3<e≤25 | ≥170MP | ≥140MP | |||
6061 | T6 | ≥265MP | ≥245MP | HV≥58 | HW≥8 | |
6063 | T5 | ≥160MP | ≥110MP | HV≥58 | HW≥8 | |
T6 | ≥205MP | ≥180MP | HV≥58 | HW≥8 |
Application | Aluminium profiles for architrcture and industry |
Alloy | Al 6063 T5 /T6 or 6061 T4/T6 or as customers' need |
Surface | Powder.coated,PVDFcoating,anodized,electrophoresis,with various colors |
Profile shape | in accordance with drawing or re-design as requested or market needs. |
Detailed Product Description | 1.Excellent waterproof and thermal break |
2. Good sound insulation | |
3. Good air tightness | |
4. Environmental-protection | |
Packing | Packing: inner plastic film, outer kraft paper or as customers' demand |
Certificate | EN 1090-2-2018; ISO3834 |
Aluminium product | Aluminum profile of windows & doors frame,thermal-break aluminum profile, curtain wall, sliding window & door, casement window & door, |
industrial aluminum extrusion,heat sink, aluminum pipe, aluminium tube, U profile, | |
T profile, etc. |
